Rob B
Member
Registered: 8th Jan 04
Location: Area Motorsport Drives: Race EP3
User status: Offline
|
Right i think it came up with this, it flashed 1 pause then 4 which is coolent temp low voltage,...
Anyone got a picture of where abouts the little fuker is
[Edited on 06-12-2005 by Rob B]
|
broster
Premium Member
Registered: 6th Dec 02
Location: Drives: E39
User status: Offline
|
its the one on the thermostat.....
|
Siberia
Member
Registered: 9th Oct 03
Location: Leprechaun Land Drives : Zafira GSI
User status: Offline
|

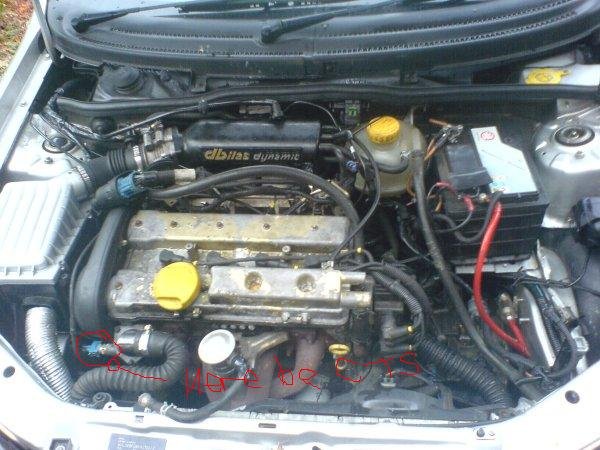

the blue one ... here...
|
broster
Premium Member
Registered: 6th Dec 02
Location: Drives: E39
User status: Offline
|
|
Rob B
Member
Registered: 8th Jan 04
Location: Area Motorsport Drives: Race EP3
User status: Offline
|
hmm now im confused... the diog never flashed the 1 then 2 to see the diog is on if you get me but it was defo flashing a code ....  and im pretty sure i bought a brand new one of them when the engine was fitted ... i also dont see how that could cause the eml to come on when i boot it...
|
Rileysport
Member
Registered: 18th Jun 04
Location: West Yorkshire
User status: Offline
|
hmmm, not a cts symptom that
|
dna23
Member
Registered: 1st Nov 04
Location: Northamptonshire
User status: Offline
|
rob's just copying me with problems in his engine bay  my cts goes so he wants hit to, to
[Edited on 06-12-2005 by dna23]
|
Rob B
Member
Registered: 8th Jan 04
Location: Area Motorsport Drives: Race EP3
User status: Offline
|
well i must be doing the diog wrong then but i cant be doing it wrong cause it flashes at me and stuff .... does like one flash, then 4 flashes, then 10 then 5 then 1 and then 4 etc ....
|
Rileysport
Member
Registered: 18th Jun 04
Location: West Yorkshire
User status: Offline
|
10 then 5 ??????
|
Rob B
Member
Registered: 8th Jan 04
Location: Area Motorsport Drives: Race EP3
User status: Offline
|
yeah...bridge the two pins, it flashes
Once then four then ten then five then one , four, ten, five and so on ...
|
Jambo
Member
Registered: 8th Sep 01
Location: Maidenhead, Drives: VXR Arctic
User status: Offline
|
u not got the codes??
CTS are absoloute gob shites. Ive had 2.
|
Rob B
Member
Registered: 8th Jan 04
Location: Area Motorsport Drives: Race EP3
User status: Offline
|
yeah ive got all the codes wrote down on a piece of paper, im saying that , that is the sequence it flashed at me... any ideas ?
|
Nick A
Member
Registered: 28th Nov 04
Location: Hertfordshire
User status: Offline
|
1405 (according to your flash code is Exhaust Gas Re-circulation (EGR) valve
|
Rob B
Member
Registered: 8th Jan 04
Location: Area Motorsport Drives: Race EP3
User status: Offline
|
right ok, is the EGR valve in any way linked upto the secondry air pump i also have no idea how you got 1405 unless 10 = 0 ?
|
Nick A
Member
Registered: 28th Nov 04
Location: Hertfordshire
User status: Offline
|
10 equals 0, 10 continuous flashes is equal to 0 look at the link and scroll down
http://www.topbuzz1.carenthusiasts.co.uk/info/fault_codes/fault_codes.htm
|
Rob B
Member
Registered: 8th Jan 04
Location: Area Motorsport Drives: Race EP3
User status: Offline
|
ah ok then right so its the EGR valve then cause it just kept repeating that sequence of 1,4,0,5
Bastard hmm, arnt these the things that people blank off ?
|
broster
Premium Member
Registered: 6th Dec 02
Location: Drives: E39
User status: Offline
|
yep they are, very easy to do aswell with your inlet.
|
Nick A
Member
Registered: 28th Nov 04
Location: Hertfordshire
User status: Offline
|
i was surprised when the code showed that, thought it would be what mine was, obviously not.
i cant tell u much else about where it is, remove bulb from dash or bit of duck tape over the top
|
Rob B
Member
Registered: 8th Jan 04
Location: Area Motorsport Drives: Race EP3
User status: Offline
|
is there a guide anywhere to blanking this off i dont even know where it is
But just asked the dude that did my engine and the EGR is all still plugged in so...
|
dna23
Member
Registered: 1st Nov 04
Location: Northamptonshire
User status: Offline
|
quote:
Originally posted by j1400
quote:
Originally posted by Greasemonkey
The EGR valve passes unburnt exhaust fumes backinto the inlet to be burnt again, this causes a slight power loss, hence early GSI's having more power, Remove it definately, you can blank it off and remove the pump an blocking the hole in the manifold, well worth doing as the EGR plays up allot so its good to eliminate it
EGR has nothing to do with the power difference between the C16 and X16XE's as it shuts off at WOT anyways.
It only works during in light throttle anyways. It only really draws exhaust gas out of port 4, so isn't massively effective anyways. Blanking it off it easy enough, but simpley unplugging it produces fualt codes. blank it, clean it and it won't get dirty and won't cause issues.
Power on the C16 can be down to
inlet port design
CR
cam
management system.
J
|
dna23
Member
Registered: 1st Nov 04
Location: Northamptonshire
User status: Offline
|
http://www.corsasport.co.uk/board/viewthread.php?tid=157696
|
Rob B
Member
Registered: 8th Jan 04
Location: Area Motorsport Drives: Race EP3
User status: Offline
|
cheers Sam well i have blanked off the bit on the manifold that goes into the head but i havent blanked off the actually valve bit of it i dont think anyone got some pics of a egr valve so i know what im dealing with... and what needs blanking off.
|
broster
Premium Member
Registered: 6th Dec 02
Location: Drives: E39
User status: Offline
|
you need to make sure the valve can open and close still!
|
Rob B
Member
Registered: 8th Jan 04
Location: Area Motorsport Drives: Race EP3
User status: Offline
|
Ok then. this is what i mean i could do with knowing which bit to blank off and pic of where it actually is on the engine.
|
broster
Premium Member
Registered: 6th Dec 02
Location: Drives: E39
User status: Offline
|
i may make up a plate this weekend for robins car if i do ill make 2?
|
