Author What wiring do I keep for xe conversion
Vauxdan88
Member

Registered: 13th Feb 11
Location: Weymouth Dorset
User status: Offline
7th Mar 12 at 23:42   View User's Profile U2U Member Reply With Quote

Im putting an early xe into a 1.4 sport and I want to use one of them twag conversion looms if I can get hold of one?? And I want to know what wiring I need to keep from the Corsa? I want to sell the 1.4 engine but not realise after Ive sold it that I've sold it with a part of wiring that I need!
davieslim
Member

Registered: 15th Sep 08
Location: Glasgow City
User status: Offline
7th Mar 12 at 23:52   View User's Profile U2U Member Reply With Quote

engine can go with the full engine loom, basically everything from the plugs in the drivers kick plate forward, all you need is the woring from the engine loom plugs back and the charging loom off the engine that goes from the battery to starter and alternator
Vauxdan88
Member

Registered: 13th Feb 11
Location: Weymouth Dorset
User status: Offline
7th Mar 12 at 23:54   View User's Profile U2U Member Reply With Quote

I get the charging loom bit but dunno if I'm being a bit thick,don't get the bit 'engine loom plugs back'?? I wish there was people in my area that could come and show me! Lol
fazza
Member

Registered: 7th Feb 08
Location: Plymouth
User status: Offline
8th Mar 12 at 09:14   View User's Profile U2U Member Reply With Quote

In the drivers footwell there is a plug that looks like this:



unplug that all pull the loom up through the bulkhead into the engine bay.

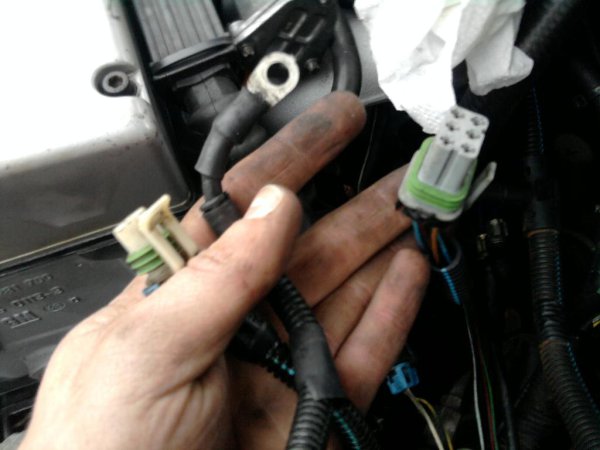

Then at the back of the engine, there is a plug(on the right in the pic below)



Follow that plug back to the alternator and starter motor and remove it from them.

The rest of the wiring can go with the engine as you WILL NOT need it

Hope this helps
Vauxdan88
Member

Registered: 13th Feb 11
Location: Weymouth Dorset
User status: Offline
8th Mar 12 at 09:29   View User's Profile U2U Member Reply With Quote

Ok mate cheers,I'm going to the car in a bit so il have a look
Vauxdan88
Member

Registered: 13th Feb 11
Location: Weymouth Dorset
User status: Offline
8th Mar 12 at 13:37   View User's Profile U2U Member Reply With Quote

I've taken out that main loom that was linked to the ecu,so now that terminal and the 2 plugs you've pictured is that what I leave in the car and the rest I don't need?

[Edited on 08-03-2012 by Vauxdan88]
fazza
Member

Registered: 7th Feb 08
Location: Plymouth
User status: Offline
8th Mar 12 at 15:33   View User's Profile U2U Member Reply With Quote

the plug on the right will stay in the engine bay but yes with the car
Vauxdan88
Member

Registered: 13th Feb 11
Location: Weymouth Dorset
User status: Offline
8th Mar 12 at 16:05   View User's Profile U2U Member Reply With Quote

Ok cheers mate think I got it now. Know anyone that wants a 1.4 engine? Lol
