Author Help wiring up subs to amp (pic)
Predator Corsa
Member
Registered: 29th Sep 03
Location: Kent
User status: Offline
8th Jul 05 at 15:59   View User's Profile U2U Member Reply With Quote

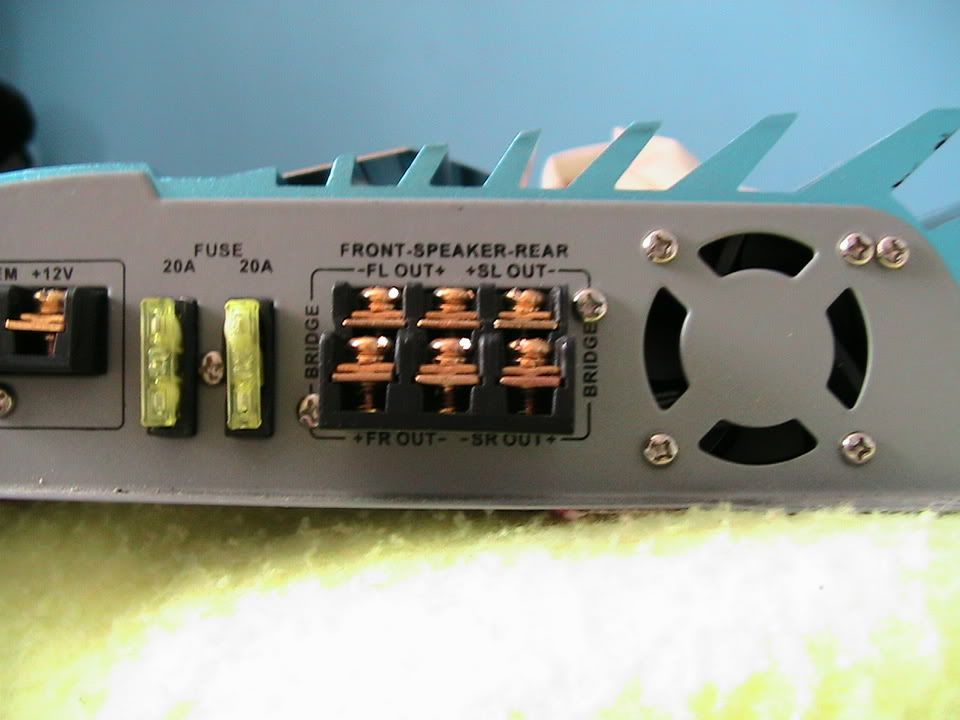

Right got a 1600w 4 channel amp and gonna be running 3 subs off.



I dont understand the connections on it. so basically got 6 wires goin in 3 + and 3 - where do they go???

anyhelp
Martin
Member
Registered: 15th Mar 04
Location: Dumpstable Drives: Aztec Sxi
User status: Offline
8th Jul 05 at 16:45   View User's Profile U2U Member Reply With Quote
i'd guess:

top left and bottom left
top middle and bottom middle
top right and bottom right

i cant see more than one wire in each terminal
RichR
Premium Member

Avatar

Registered: 17th Oct 01
Location: Waterhouses, Staffordshire
User status: Offline
9th Jul 05 at 00:33   View Garage View User's Profile U2U Member Reply With Quote
u sure its 4 ch; only looks like three ch. there
RKS
Member
Registered: 2nd Mar 04
Location: Gloucestershire UK
User status: Offline
9th Jul 05 at 08:19   View User's Profile U2U Member Reply With Quote
its deffo a 4 channel,
read the outputs, it has FL FR SL and SR outs

the middle pins are shared and have 2 feeds running too them inside the amp,

I really dought you will be able to run three subs from this amp though,

it looks to me like only the outside 2 can be bridged, allthough check the manual for the middle ones before connecting a sub up,

what model is the amp??
Richie
Member
Registered: 3rd Dec 02
Location: Newport, Wales
User status: Offline
9th Jul 05 at 20:00   View User's Profile U2U Member Reply With Quote
1600w from an amp with 2x 20amp fuses FPMSL
toxic
Member
Registered: 23rd May 05
User status: Offline
10th Jul 05 at 00:16   View User's Profile U2U Member Reply With Quote
ITs around 400w rms top's


[Edited on 10-07-2005 by toxic]
Scotty_B
Member
Registered: 11th Jun 03
Location: East Kilbride
User status: Offline
12th Jul 05 at 15:03   View User's Profile U2U Member Reply With Quote
quote:
Originally posted by toxic
ITs around 400w rms top's


[Edited on 10-07-2005 by toxic]


Doubt it my 2 channel 2x75w RMS Alpine amp has one 30amp fuse.
Melville
Member
Registered: 4th Jun 03
Location: Newcastle upon Tyne
User status: Offline
12th Jul 05 at 16:00   View User's Profile U2U Member Reply With Quote
^^ as does mine
