Author Easiest way to split drum brakes
Steve
Premium Member

Avatar

Registered: 30th Mar 02
Location: Worcestershire Drives: Defender
User status: Offline
10th May 10 at 07:26   View Garage View User's Profile U2U Member Reply With Quote
Undo the large hub nut? or by undoing the 4 stub axle bolts and removing the stub axle assembley with the drum?

i believe it can be done both ways but whats the most pain free
dhdev
Member
Registered: 22nd Dec 05
Location: Midlands
User status: Offline
10th May 10 at 07:29   View User's Profile U2U Member Reply With Quote
Remove the large nut and split pin. IIRC removing the four stub axle bolts will give you an entire backplate, drum, stub axle assembly, that will still need splitting.
Steve
Premium Member

Avatar

Registered: 30th Mar 02
Location: Worcestershire Drives: Defender
User status: Offline
10th May 10 at 07:38   View Garage View User's Profile U2U Member Reply With Quote
i think the drum will split if you undo the 4 stub axle bolts just takes the stub axle with it

might be wrong, this is for a ford puma btw, but most drum set ups are pretty universal
DaveyLC
Member
Registered: 8th Oct 08
Location: Berkshire
User status: Offline
10th May 10 at 07:41   View User's Profile U2U Member Reply With Quote
You want to get the drum off carrier/back plate or you want the carrier off the rear beam?
Steve
Premium Member

Avatar

Registered: 30th Mar 02
Location: Worcestershire Drives: Defender
User status: Offline
10th May 10 at 07:43   View Garage View User's Profile U2U Member Reply With Quote
want to get drum off carrier back plate, to change brake shoes
dhdev
Member
Registered: 22nd Dec 05
Location: Midlands
User status: Offline
10th May 10 at 07:44   View User's Profile U2U Member Reply With Quote
Do you mean removal of the drum assembly, or as the title says splitting the drum
willay
Moderator
Organiser: South East, National Events
Premium Member

Avatar

Registered: 10th Nov 02
Location: Roydon, Essex
User status: Offline
10th May 10 at 07:44   View Garage View User's Profile U2U Member Reply With Quote
hammer
dhdev
Member
Registered: 22nd Dec 05
Location: Midlands
User status: Offline
10th May 10 at 07:47   View User's Profile U2U Member Reply With Quote
Big castellated centre nut, get it undone. Then as Willay says, get the hammer out and start bashing (back off the adjusters on the shoes to retract them first)
Ojc
Member
Registered: 14th Nov 00
Location: Reading: Drives : Clio 197
User status: Offline
10th May 10 at 07:49   View User's Profile U2U Member Reply With Quote
Another thing you are doing that doesn't need doing.
Steve
Premium Member

Avatar

Registered: 30th Mar 02
Location: Worcestershire Drives: Defender
User status: Offline
10th May 10 at 08:17   View Garage View User's Profile U2U Member Reply With Quote
quote:
Originally posted by Ojc
Another thing you are doing that doesn't need doing.


how would you know you ignorant twat

hi mate
Ojc
Member
Registered: 14th Nov 00
Location: Reading: Drives : Clio 197
User status: Offline
10th May 10 at 08:44   View User's Profile U2U Member Reply With Quote
Not at work today mate.
Steve
Premium Member

Avatar

Registered: 30th Mar 02
Location: Worcestershire Drives: Defender
User status: Offline
10th May 10 at 08:46   View Garage View User's Profile U2U Member Reply With Quote
why
DaveyLC
Member
Registered: 8th Oct 08
Location: Berkshire
User status: Offline
10th May 10 at 08:56   View User's Profile U2U Member Reply With Quote
Release hand brake, remove stub axle nut and beat off with copper/rubber mallet..

Simples
Steve
Premium Member

Avatar

Registered: 30th Mar 02
Location: Worcestershire Drives: Defender
User status: Offline
10th May 10 at 09:00   View Garage View User's Profile U2U Member Reply With Quote
trouble with removing the hub nut is i dont have a torque wrench that will tighten back to 235nm

so i wondered if it could be done by removing the stub axle bolts on the rear
ed
Member
Registered: 10th Sep 03
User status: Offline
10th May 10 at 10:31   View User's Profile U2U Member Reply With Quote
Of course it wont. That will just remove the stub axle and you'll have to release the brake line and handbrake cable to get the assembly off. Then you'll still need to undo the castle nut to get to the brake shoes.
Steve
Premium Member

Avatar

Registered: 30th Mar 02
Location: Worcestershire Drives: Defender
User status: Offline
10th May 10 at 10:34   View Garage View User's Profile U2U Member Reply With Quote
Sure? i thought the only thing holding the drum to the backing carrier was the stub axle which gets bolted through the drum carrier to the rear beam
Steve
Premium Member

Avatar

Registered: 30th Mar 02
Location: Worcestershire Drives: Defender
User status: Offline
10th May 10 at 10:36   View Garage View User's Profile U2U Member Reply With Quote

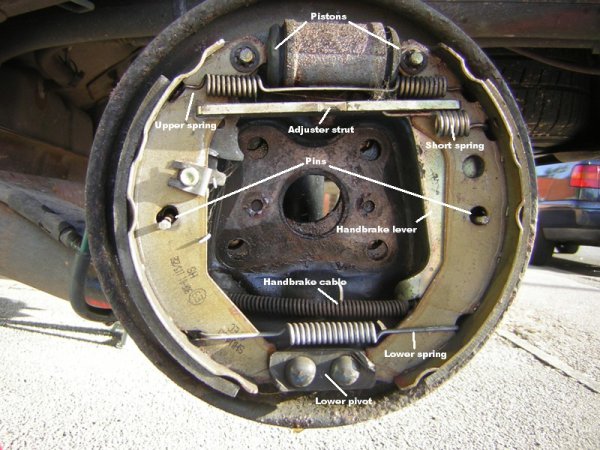

if you undo the stub axle bolts and pull it away are you not left with this?
DaveyLC
Member
Registered: 8th Oct 08
Location: Berkshire
User status: Offline
10th May 10 at 10:38   View User's Profile U2U Member Reply With Quote
I'd be worried if I was left with a blue rectangle that says "Image is remotely linked or blocked by firewall. fiestaturbo.com".
Steve
Premium Member

Avatar

Registered: 30th Mar 02
Location: Worcestershire Drives: Defender
User status: Offline
10th May 10 at 10:39   View Garage View User's Profile U2U Member Reply With Quote
thats a problem at your end then, not with my link
stubs
Member
Registered: 30th Jun 02
Location: Bolton
User status: Offline
10th May 10 at 11:08   View User's Profile U2U Member Reply With Quote
quote:
Originally posted by DaveyLC
I'd be worried if I was left with a blue rectangle that says "Image is remotely linked or blocked by firewall. fiestaturbo.com".


+1
Joe
Member
Registered: 20th Jun 04
Location: Hesketh Bank, Lancashire
User status: Offline
10th May 10 at 11:15   View User's Profile U2U Member Reply With Quote
Just undo the big nut in the middle and take drum off? Tighten back up till its tight, no need to a torque wrench. I thought you were meant to be quite clued up Steve.
Steve
Premium Member

Avatar

Registered: 30th Mar 02
Location: Worcestershire Drives: Defender
User status: Offline
10th May 10 at 11:21   View Garage View User's Profile U2U Member Reply With Quote
its meant to be 235nm for a reason so yu dont over tighten and damage the wheel bearing iirc

plus i hate faffing around with rear drums so have always steered clear of them in the past

[Edited on 10-05-2010 by Steve]
Steve
Premium Member

Avatar

Registered: 30th Mar 02
Location: Worcestershire Drives: Defender
User status: Offline
10th May 10 at 11:33   View Garage View User's Profile U2U Member Reply With Quote
heres the pic for people that cant see it
dhdev
Member
Registered: 22nd Dec 05
Location: Midlands
User status: Offline
10th May 10 at 11:33   View User's Profile U2U Member Reply With Quote
quote:
Originally posted by Steve
its meant to be 235nm for a reason so yu dont over tighten and damage the wheel bearing iirc

plus i hate faffing around with rear drums so have always steered clear of them in the past

[Edited on 10-05-2010 by Steve]


Take it to a garage and quit ya moaning?
Steve
Premium Member

Avatar

Registered: 30th Mar 02
Location: Worcestershire Drives: Defender
User status: Offline
10th May 10 at 11:34   View Garage View User's Profile U2U Member Reply With Quote
would rather do it myself and save myself 60 quid and learn something in the process
