. . .I've started a thread about this before, but want to get it sorted once and for all.
Is this like to be the IACV bare in mind the Engine Management Light ISN'T ON.
Is there anything else this could possibly be? I've heard people talk about a 'coil pack', but I have no idea what one is etc?!
Is it beneficial to clean the IACV (the sprung part) with something such as carb cleaner? Is carb cleaner the right thing to use?
Any help would be appreciated. Also, with the revs dropping so low and the idling being very lumpy, could this cause any other trouble?

|
Jake
Member
Registered: 24th Jan 05
User status: Offline
|
unplug it, hold it out in front of you and spray a load of carb cleaner of it until it runs clear
|
deano87
Member
Registered: 21st Oct 06
Location: Bedfordshire Drives: Ford Fiesta
User status: Offline
|
quote:
Originally posted by jake
unplug it, hold it out in front of you and spray a load of carb cleaner of it until it runs clear
I take it I have to cover up the plug where it connects to the car wiring loom?!
|
Joe
Member
Registered: 20th Jun 04
Location: Hesketh Bank, Lancashire
User status: Offline
|
I can't see cleaning it making a difference as its a sealed unit anyway.
|
James_H
Member
Registered: 16th Sep 07
Location: Slough, Berkshire
User status: Offline
|
If the motor in fooked in the icv, spraying brake clear is gonna do fook all.
|
deano87
Member
Registered: 21st Oct 06
Location: Bedfordshire Drives: Ford Fiesta
User status: Offline
|
quote:
Originally posted by Joe
I can't see cleaning it making a difference as its a sealed unit anyway.
What about the sprung bit that works along side the throttle cable?
|
deano87
Member
Registered: 21st Oct 06
Location: Bedfordshire Drives: Ford Fiesta
User status: Offline
|
Do does it sound like the IACV, as I don't want to rule out anything else?
|
Kenzie
Member
Registered: 16th Sep 07
Location: Burnley
User status: Offline
|
Check your fuses. My moneys on that its a yellow one thats blown (cant remember its amperage!)
|
James_H
Member
Registered: 16th Sep 07
Location: Slough, Berkshire
User status: Offline
|
fuse? yeh prob is the icv, you wil have to get the stepper motor reset at vauxhall aswell proberly.
|
Joe
Member
Registered: 20th Jun 04
Location: Hesketh Bank, Lancashire
User status: Offline
|
http://cgi.ebay.co.uk/Idle-Air-Control-Valve-Vauxhall-Astra-Corsa-825485_W0QQitemZ230240306301QQcmdZViewItem
As you can see there isn't much that cleaning will do to that.
|
deano87
Member
Registered: 21st Oct 06
Location: Bedfordshire Drives: Ford Fiesta
User status: Offline
|
quote:
Originally posted by jahunt
fuse? yeh prob is the icv, you wil have to get the stepper motor reset at vauxhall aswell proberly.
Stepper motor?
I know I can reset the ECU by leaving the battery disconnected for more than 1 hour, however not sure how my alarm will react
Joe - I guess not.
Been emailing LMF Vauxhall via eBay today (who actually trade as 'VauxhallpartsUK') and they have non-Bosch/GM IACV's that they never have problems with and are warranted. Might give one a go.
|
deano87
Member
Registered: 21st Oct 06
Location: Bedfordshire Drives: Ford Fiesta
User status: Offline
|
I've also read on here about a leaky breather pipe & something to do with a vacuum?
|
James_H
Member
Registered: 16th Sep 07
Location: Slough, Berkshire
User status: Offline
|
Could be that, give it a quick check over.
Yeh stepper motor is the motor in the icv
|
deano87
Member
Registered: 21st Oct 06
Location: Bedfordshire Drives: Ford Fiesta
User status: Offline
|
One question. . .what is a breather pipe/vacuum system?
|
James_H
Member
Registered: 16th Sep 07
Location: Slough, Berkshire
User status: Offline
|
You get crank case vacum, and if there is a leak more air gets in to the engine via the rocker and makes the engine idle rough.

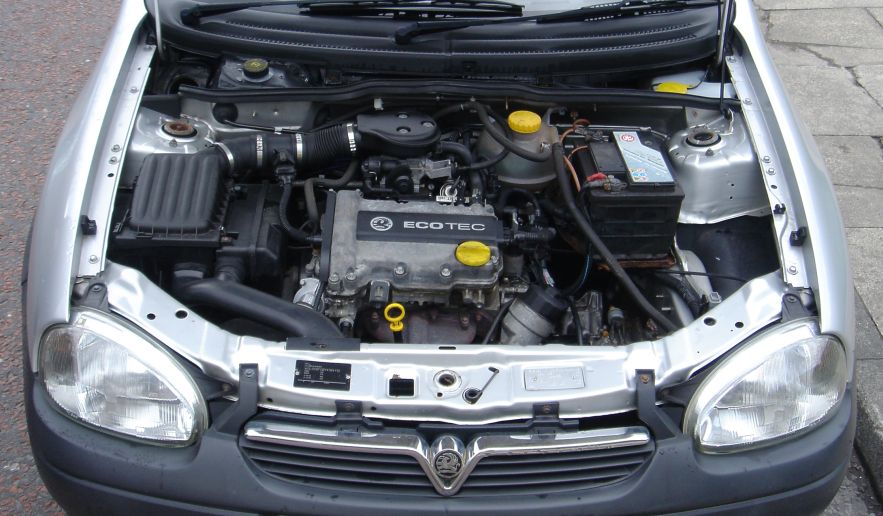

http://www.salvagedealers.com/LANCS%20WEBSITE%20IMAGES/VAUXHALL%20CORSA%201.0%20'W'%20009%20WP.jpg
See near the throttle cable to the right there is a pipe going to the top of the throttle body, thats the crank case breather pipe.
|
deano87
Member
Registered: 21st Oct 06
Location: Bedfordshire Drives: Ford Fiesta
User status: Offline
|
quote:
Originally posted by jahunt
You get crank case vacum, and if there is a leak more air gets in to the engine via the rocker and makes the engine idle rough.
http://www.salvagedealers.com/LANCS%20WEBSITE%20IMAGES/VAUXHALL%20CORSA%201.0%20'W'%20009%20WP.jpg
See near the throttle cable to the right there is a pipe going to the top of the throttle body, thats the crank case breather pipe.

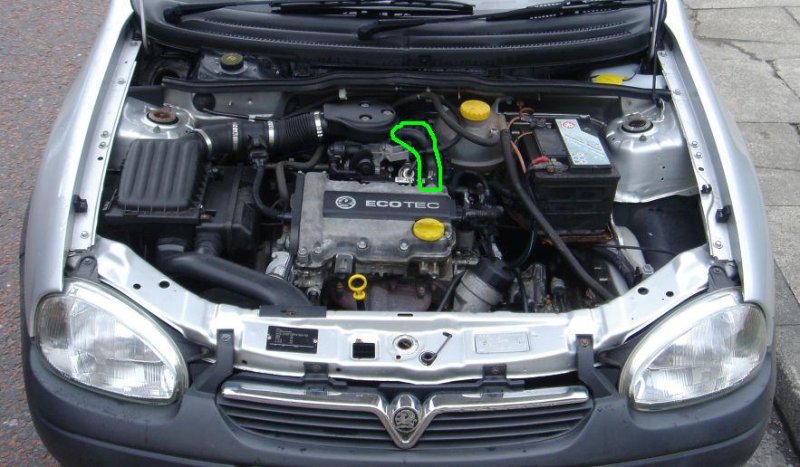

The bit that goes from beside the 3 bolts in the round plastic thing  to the rocker cover?
The bit circled in green?
And how do you know if it's leaking etc?
[Edited on 23-09-2008 by deano87]
|
deano87
Member
Registered: 21st Oct 06
Location: Bedfordshire Drives: Ford Fiesta
User status: Offline
|
|
Fonz
Premium Member
Registered: 12th May 06
Location: Newbury, Berks
User status: Offline
|
what have you tried already? no point going in with a big fix if you have tried the small ones
|
deano87
Member
Registered: 21st Oct 06
Location: Bedfordshire Drives: Ford Fiesta
User status: Offline
|
quote:
Originally posted by Fonz
what have you tried already? no point going in with a big fix if you have tried the small ones
Nothing, hence why I've posted on here
I don't want to spend out on a new ICV and then have the trouble of that being calibrated to the ECU, if it is simply a pipe that is split or something
Jahunt - is the bit I've circled the bit you were on about?
|
Joe
Member
Registered: 20th Jun 04
Location: Hesketh Bank, Lancashire
User status: Offline
|
You don't calibrate a new one to the ECU, just fit it and start the car.
|
James_H
Member
Registered: 16th Sep 07
Location: Slough, Berkshire
User status: Offline
|
yeh thats it!
See if that has any holes in it, if it doesnt, must be the icv, what does it do?
|
deano87
Member
Registered: 21st Oct 06
Location: Bedfordshire Drives: Ford Fiesta
User status: Offline
|
quote:
Originally posted by jahunt
yeh thats it!
See if that has any holes in it, if it doesnt, must be the icv, what does it do?
What do you mean? I've described everything it does
|
deano87
Member
Registered: 21st Oct 06
Location: Bedfordshire Drives: Ford Fiesta
User status: Offline
|
quote:
Originally posted by Joe
You don't calibrate a new one to the ECU, just fit it and start the car.
|
Fonz
Premium Member
Registered: 12th May 06
Location: Newbury, Berks
User status: Offline
|
right then first treatment which worked for me and others who i have passed on my wisedom to is the following.
the ICV needs recalibrating. scary? no! disconnect the battery, wait an hour this clears the memory. reconnect, go for a "normal" drive
see
http://www.corsasport.co.uk/board/viewthread.php?tid=44965
the ICV is a constantly adapting unit reset is the first option, then if that doesnt work move on to repair/replacement
you already know about this
http://www.corsasport.co.uk/board/viewthread.php?tid=452304
|
deano87
Member
Registered: 21st Oct 06
Location: Bedfordshire Drives: Ford Fiesta
User status: Offline
|
I'll give it a go next week, as I definitely need a working car tomorrow and need to read up on the instructions for my alarm
|
