I'm gonna have a bash at fitting my digi dash tommorow as its my day off.

I have one of these digi dash's thanks to Smart Corsa

http://www.corsasport.co.uk/board/viewthread.php?tid=287998

So its all fitted nice into a Corsa surround and ust needs wiring in.

i know there is the tutorials guide but was just seeing if there is any tips on fitting it, and fitting the gfearbox sender, i'm at work right now so will get pics of the wiring later, but is there any tips out there

Essay over

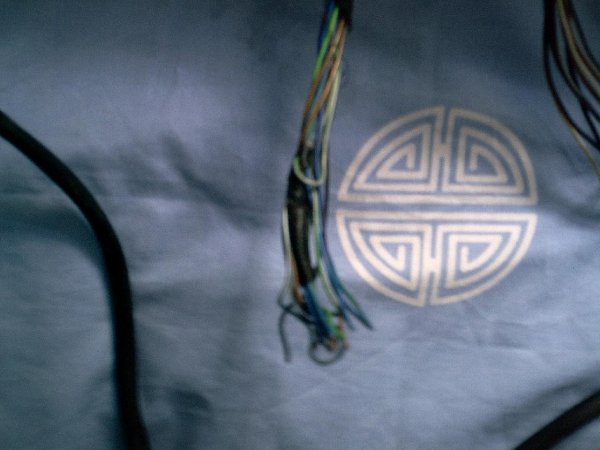

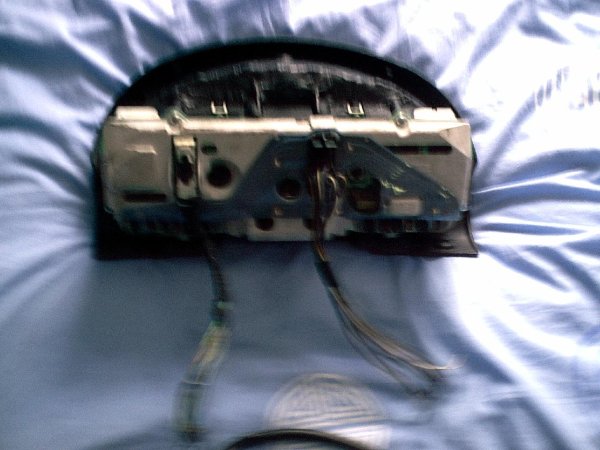

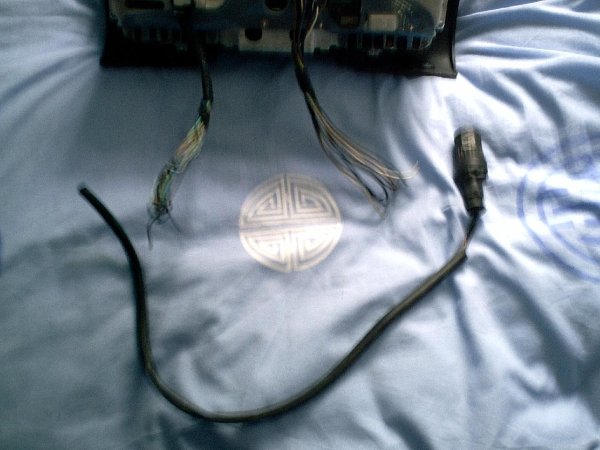

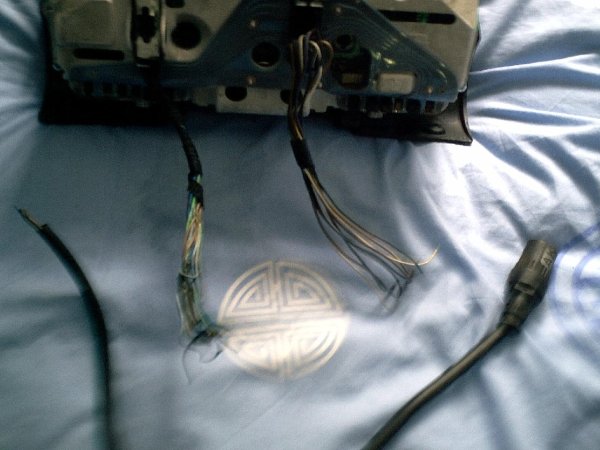

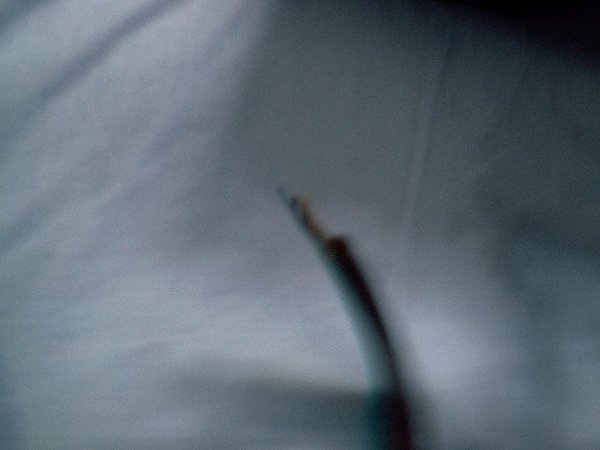

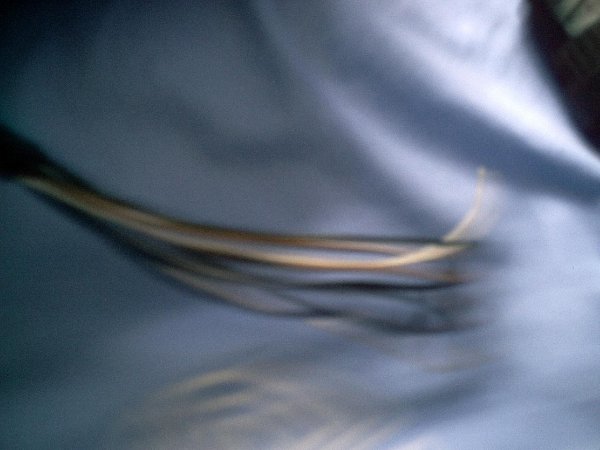

Here's a few pics of what i have to work with, hy is there so many wires?

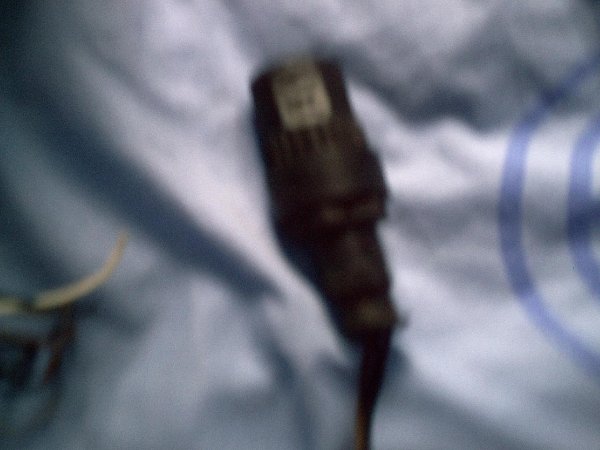

Which ones do i use, and where does that gearbox sender plug in and where does the other end go to?

Ps sorry for crap pics

[Edited on 06-06-2006 by Ajones_17]

Rileysport

Member

Registered: 18th Jun 04
Location: West Yorkshire
User status: Offline

5th Jun 06 at 19:52

wiring is a straight colour match mate, bar a few. but a quick google search'll sort that, gearbox sender screws straight on in place of the cable... black is live, brown is earth and red/blue is speed signal to dash

RobHayes

Member

Registered: 6th Sep 03
Location: Lincolnshire
User status: Offline

5th Jun 06 at 19:57

the indicators will need wiring into the actual indicators rather than the switch, even though the wires are there it shorts out the relay or something

Rileysport

Member

Registered: 18th Jun 04
Location: West Yorkshire
User status: Offline

5th Jun 06 at 19:59

quote:
Originally posted by RobHayes
the indicators will need wiring into the actual indicators rather than the switch, even though the wires are there it shorts out the relay or something

top tip

Ajones_17

Member

Registered: 20th Jun 02
Location: Sunny Wigan Drives: BLACK 03 VTS
User status: Offline

6th Jun 06 at 01:21

I can see this being a ball ache

scottc1088

Member

Registered: 7th Mar 05
Location: Chesterfield Drives: Corsa Gsi, Cbr600
User status: Offline

6th Jun 06 at 06:15

na its easy just use the wires from the switch. evrything else is nearly direct fit colour for colour

Ajones_17

Member

Registered: 20th Jun 02
Location: Sunny Wigan Drives: BLACK 03 VTS
User status: Offline

6th Jun 06 at 13:23

Just added pics if they can help me at all

Ajones_17

Member

Registered: 20th Jun 02
Location: Sunny Wigan Drives: BLACK 03 VTS
User status: Offline

6th Jun 06 at 15:29

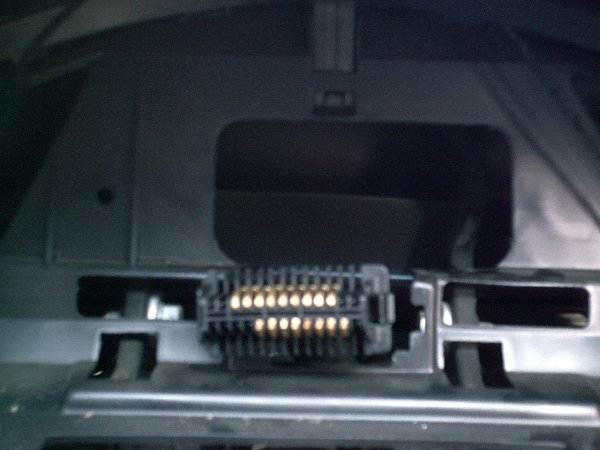

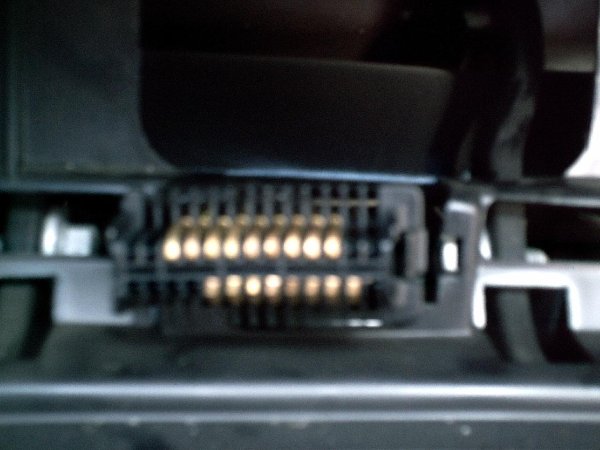

Ok i have disconnected the battery and took the clock's out, i am left with this plug.

What do i do next, do i strip the wires off this plug and put terminals on them. There isnt much play on the wires at all

Rileysport

Member

Registered: 18th Jun 04
Location: West Yorkshire
User status: Offline

6th Jun 06 at 15:32

that plug'll pull out further than that

Ajones_17

Member

Registered: 20th Jun 02
Location: Sunny Wigan Drives: BLACK 03 VTS
User status: Offline

6th Jun 06 at 15:34

I've tried but its uber tight, just like all the looms in my car

Do i need to strip all the wires from this plug then?

Rileysport

Member

Registered: 18th Jun 04
Location: West Yorkshire
User status: Offline

6th Jun 06 at 15:37

yep

the_legend_of_yrag

Member

Registered: 7th Jul 03
Location: Cambridgeshire
User status: Offline

6th Jun 06 at 15:56

im doing the same today mate.

So which wires are for the indicaters?

And also there are four brown and four black wires in the digi dash loom, havent cseen how many are in the corsa loom yet, but how will i know which one goes where?

cheers

the_legend_of_yrag

Member

Registered: 7th Jul 03
Location: Cambridgeshire
User status: Offline

6th Jun 06 at 15:58

there's one black and one brown in the corsa loom, so do i send them too all four of the black and brown ones in the dash?

Rileysport

Member

Registered: 18th Jun 04
Location: West Yorkshire
User status: Offline

6th Jun 06 at 16:11

one digi dash black is the trailer hitch tell tale... be careful

the_legend_of_yrag

Member

Registered: 7th Jul 03
Location: Cambridgeshire
User status: Offline

6th Jun 06 at 16:14

whats the trailer hitch? and what do i do with all of them as theres four and only one on the corsa loom

Rileysport

Member

Registered: 18th Jun 04
Location: West Yorkshire
User status: Offline

6th Jun 06 at 16:16

quote:
Originally posted by the_legend_of_yrag
whats the trailer hitch? and what do i do with all of them as theres four and only one on the corsa loom

all blacks, - (trailer light) to the corsa black... same with browns

the_legend_of_yrag

Member

Registered: 7th Jul 03
Location: Cambridgeshire
User status: Offline

6th Jun 06 at 16:24

ok ive noticed there are two black wires in the corsa loom, so do i connect the four in the digi loom to one block, and then run a spare wire from that to each of the black wires in corsa loom?
