There are 9 screws holding the front bumper on :
2 * 8mm at the top of the bumper , open the bonnet to see them.
3 *8mm under the bumper
1 * 8mm at each corner of the bumper (underneath - meaning five in total underneath )
1 * 10mm under each arch , where you open a flap to get to it . This "screw" is actually a plastic nut and really hard to put back on !!

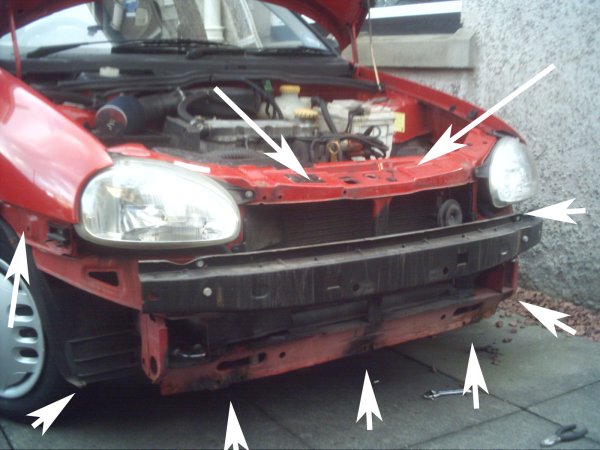

This pic shows roughly where the screws are :
The bumper should now be very loose .
Pull both the right and left arch trims gently away from the bumper , and remove the screws if you need to .
Now give the bumper a pull away from the car , and put quite a bit of force over the towing eye area of the bumper , so that it pops over it .
[Edited on 11-02-2006 by escortgti.com]
|
