Author Whats inside the here???
shrews corsa
Member
Registered: 16th Mar 01
Location: Shrewsbury, Shropshire
User status: Offline
10th Dec 05 at 19:03   View User's Profile U2U Member Reply With Quote
inside here there is a small sensor type thing lol just wondering what it is?



its got 2 wires going to it, the big red one from airbox and a blacke one from front of carb to back

cheers

[Edited on 10-12-2005 by shrews corsa]

[Edited on 11-12-2005 by shrews corsa]
TomWilly
Member
Registered: 20th Sep 05
Location: Bristol
User status: Offline
10th Dec 05 at 19:35   View User's Profile U2U Member Reply With Quote
Carb?
CorsAsh
Member
Registered: 19th Apr 02
Location: Munich
User status: Offline
10th Dec 05 at 19:36   View User's Profile U2U Member Reply With Quote
You mean the thing in the middle of the throttle body with a blue and a brown wire goin to it? That's your injector...
shrews corsa
Member
Registered: 16th Mar 01
Location: Shrewsbury, Shropshire
User status: Offline
11th Dec 05 at 13:29   View User's Profile U2U Member Reply With Quote
no sorry prob got this all wrong lol

in side the black lid (with GM on it)
Kurt
Member
Registered: 23rd Oct 05
Location: Hi
User status: Offline
11th Dec 05 at 13:58   View User's Profile U2U Member Reply With Quote
undo the two screws and have a look! its your carb. its on the inlet manifold. the red "wire" is a vacuum pipe that operates the flap in the airbox
PaulW
Member
Registered: 26th Jan 03
Location: Atherton, Greater Manchester
User status: Offline
11th Dec 05 at 14:43   View User's Profile U2U Member Reply With Quote
quote:
Originally posted by kurtofcc
undo the two screws and have a look! its your carb. its on the inlet manifold. the red "wire" is a vacuum pipe that operates the flap in the airbox


NOT a carb

single point injection, so will contain 1 injector, and the throttle butterfly
shrews corsa
Member
Registered: 16th Mar 01
Location: Shrewsbury, Shropshire
User status: Offline
11th Dec 05 at 15:34   View User's Profile U2U Member Reply With Quote
its this that i am talking about.....
Kurt
Member
Registered: 23rd Oct 05
Location: Hi
User status: Offline
11th Dec 05 at 23:57   View User's Profile U2U Member Reply With Quote
hmm fair enough, i was told it was a carb
shrews corsa
Member
Registered: 16th Mar 01
Location: Shrewsbury, Shropshire
User status: Offline
12th Dec 05 at 18:28   View User's Profile U2U Member Reply With Quote
anyone?
shrews corsa
Member
Registered: 16th Mar 01
Location: Shrewsbury, Shropshire
User status: Offline
13th Dec 05 at 20:25   View User's Profile U2U Member Reply With Quote
please
CRFC
Member
Registered: 26th Jan 05
Location: Ireland
User status: Offline
14th Dec 05 at 12:48   View User's Profile U2U Member Reply With Quote
injector
shrews corsa
Member
Registered: 16th Mar 01
Location: Shrewsbury, Shropshire
User status: Offline
14th Dec 05 at 19:31   View User's Profile U2U Member Reply With Quote

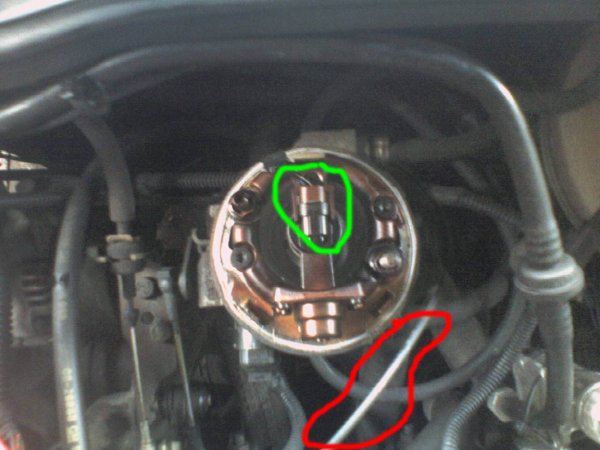

TOP PIC
its NOT wat i have circled green
the black wire circled red goes to the sensor

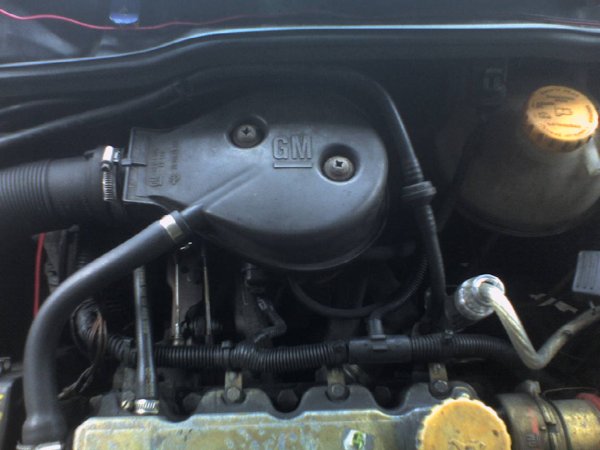

MIDDLE PIC
the red wire circled green also goes to the sensor
the idle control valve circled red is where the black wire comes from

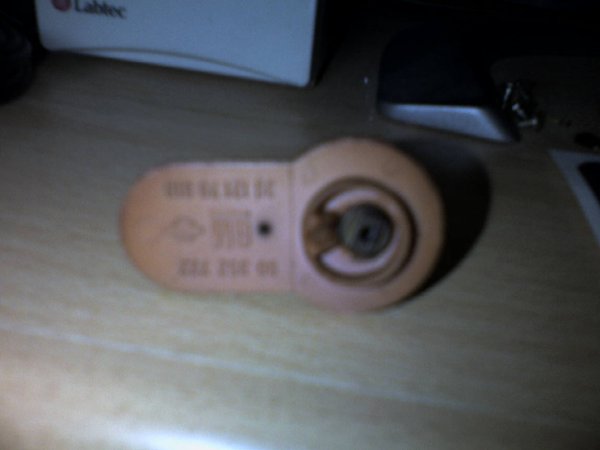

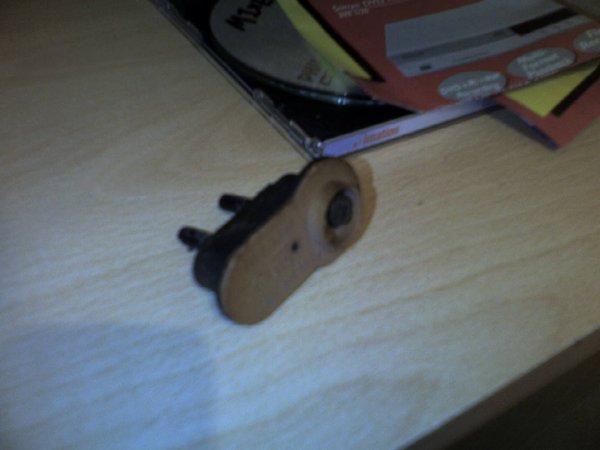

BOTTOM PIC
Another pic of the sensor
shrews corsa
Member
Registered: 16th Mar 01
Location: Shrewsbury, Shropshire
User status: Offline
15th Dec 05 at 18:00   View User's Profile U2U Member Reply With Quote
TTT
AuroraSport
Member
Registered: 5th Mar 05
Location: Norfolk Drives: Audi B5 S4 Avant
User status: Offline
15th Dec 05 at 18:14   View User's Profile U2U Member Reply With Quote
could be a throttle position sensor?
CoastalCorsa
Member
Registered: 7th Jan 05
Location: Lancashire
User status: Offline
15th Dec 05 at 18:32   View User's Profile U2U Member Reply With Quote


The brown thingy circled Green is the power for the single injector

the red pipe is a vacuum pipe which goes to your air box and controls either hot or cold air flow

just had a look in haynes its idle speed control/throttle position sensor


[Edited on 15-12-2005 by CoastalCorsa]
shrews corsa
Member
Registered: 16th Mar 01
Location: Shrewsbury, Shropshire
User status: Offline
15th Dec 05 at 19:35   View User's Profile U2U Member Reply With Quote
i Dont need to know the other stuff sorry its just the thing in the last pic, its inside the airbox where i have put a yellow mark
CoastalCorsa
Member
Registered: 7th Jan 05
Location: Lancashire
User status: Offline
15th Dec 05 at 19:38   View User's Profile U2U Member Reply With Quote
Is it not one of the vacuum pipe ends that pushes onto the rear of the black round inlet housing

have you disconnected anything from it ie wires or pipes
shrews corsa
Member
Registered: 16th Mar 01
Location: Shrewsbury, Shropshire
User status: Offline
15th Dec 05 at 20:18   View User's Profile U2U Member Reply With Quote
the red vacuum pipe connects to the thing i wanna know
CoastalCorsa
Member
Registered: 7th Jan 05
Location: Lancashire
User status: Offline
16th Dec 05 at 15:04   View User's Profile U2U Member Reply With Quote
Right so the brown thingy connects onto the red vacuum pipe which goes to the air box the brown thing then clips onto a nipple type thing either on the underside of the black housing that fits over the injector or onto the neck of the inlet manifold
shrews corsa
Member
Registered: 16th Mar 01
Location: Shrewsbury, Shropshire
User status: Offline
16th Dec 05 at 19:21   View User's Profile U2U Member Reply With Quote
sorry, i know where it goes i just dont know what its called
CoastalCorsa
Member
Registered: 7th Jan 05
Location: Lancashire
User status: Offline
17th Dec 05 at 15:49   View User's Profile U2U Member Reply With Quote
Hot air vacuum control valve - Guess

you need a name so you can buy a new one or summet
shrews corsa
Member
Registered: 16th Mar 01
Location: Shrewsbury, Shropshire
User status: Offline
17th Dec 05 at 16:59   View User's Profile U2U Member Reply With Quote
nah just wondered wat it was really
Jake
Member
Registered: 24th Jan 05
User status: Offline
17th Dec 05 at 17:48   View User's Profile U2U Member Reply With Quote
is that plug thing you circled red definately the idle control valve?
Jake
Member
Registered: 24th Jan 05
User status: Offline
18th Dec 05 at 21:18   View User's Profile U2U Member Reply With Quote
shrews corsa
Member
Registered: 16th Mar 01
Location: Shrewsbury, Shropshire
User status: Offline
18th Dec 05 at 21:52   View User's Profile U2U Member Reply With Quote
yea thats the ICV
