Welsh Dan
Member
Registered: 23rd Mar 00
User status: Offline
|
Well, i've been meaning to get my car rolling roaded for a while. It had most of the stage 2 parts for a while, but I was waiting to get it mapped and the injectors fitted before I had it tested.
Anyway, the engine spec is like so....
5Zigen Fireball 3" Exhaust
Denso IK24 Iridium plugs
Walbro Fuel Pump
Decat
Nismo 555cc injectors
Horsham Developments stage 2 chip
Apexi Induction Kit
XS Power front mount intercooler
GReddy Profec B boost controller (low setting is approx 1bar and high setting is approx 1.2bar)
HKS uprated actuator

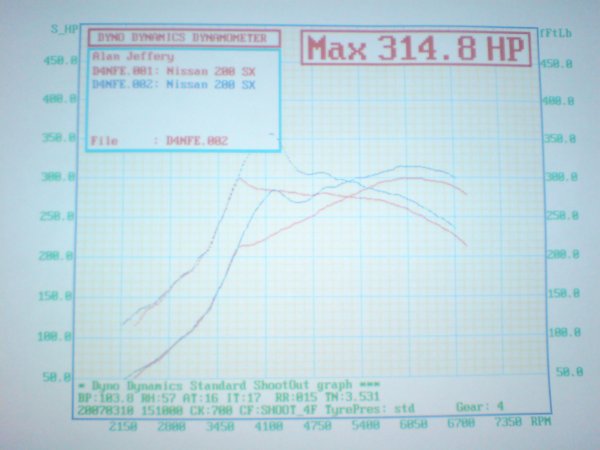

Anyway, got it on the rollers and the high setting (1.2 bar) gives us this
314.8 bhp and 356 lb/ft
On the low setting (1 bar), it made 299.6bhp and 300lb/ft, which is respectable enough. I'd have been happy with 300bhp @ 1.2 bar!
The RR guy commented that it was running a bit lean though and that there was a bit of detonation, so I need to get the timing checked and possibly invest in a fuel pressure regulator. Still, mustn't grumble as the guy who did the chip reckoned it was normally 280-290
|
Robin
Premium Member
Registered: 7th Jan 04
Location: Northants Drives: Clio 182 Cup
User status: Offline
|
Jesus Christ Dan
|
Welsh Dan
Member
Registered: 23rd Mar 00
User status: Offline
|
If I sort the timing/fuel pressure regulator out, it should make a tiny bit more. Its made me wonder about investing in a tubular manifold and turbo elbow though, as it'll only cost £180 or so and should help quite a bit
|
Gareth
Member
Registered: 2nd Mar 00
Location: Derby, Drives: EVO VIII MR & pug 308
User status: Offline
|
I would be worried about the det as it can kill an engine in seconds. Nice figures though, bet its a right drift bitch!
|
Welsh Dan
Member
Registered: 23rd Mar 00
User status: Offline
|
Yeah, that was why he stopped and didn't take it any further. I've put the settings back on 1 bar now, so its fine. I'm going to find off the guy that mapped it about the fuel pressure regulator and timing and i'll take it back once I know what needs to be done
|
jr
Member
Registered: 20th May 02
Location: Kent
User status: Offline
|
det would concern me too, good result
|
justrials2
Member
Registered: 12th Jul 05
User status: Offline
|
ive got a silvia am from the wirral an we do alot of driting around here. shud meet up some time
|
justrials2
Member
Registered: 12th Jul 05
User status: Offline
|
id also look at a manifold an a elbo as they give you alot of mid range power an look ace when there glowing red after a good drift
|
broster
Premium Member
Registered: 6th Dec 02
Location: Drives: E39
User status: Offline
|
quote:
Originally posted by justrials2
id also look at a manifold an a elbo as they give you alot of mid range power an look ace when there glowing red after a good drift
then they snap and fall off as they cost £2 off ebay.
|
justrials2
Member
Registered: 12th Jul 05
User status: Offline
|
well if you dont buy the crap off ebay an go to apex you get a good one there that will last alot longer
|
broster
Premium Member
Registered: 6th Dec 02
Location: Drives: E39
User status: Offline
|
quote:
Originally posted by justrials2
well if you dont buy the crap off ebay an go to apex you get a good one there that will last alot longer
agreed!
good results tho dan
|
justrials2
Member
Registered: 12th Jul 05
User status: Offline
|
also if you are running the standard turbo it will be at its limit on power with out running it to hard all the time but that is i realy good result. The 200sx is a good car to get power out of the sr20det engine for little money
|
Welsh Dan
Member
Registered: 23rd Mar 00
User status: Offline
|
It'll be Apex that I get the bits from if I choose to buy them anyway. The turbo is nearing its limits, so the boost won't get turned up any further now anyway
|
justrials2
Member
Registered: 12th Jul 05
User status: Offline
|
if you need any help or parts jus pm me ive done all the work on mine like gear box cluch tubular minifold intercooler elbo plus more an know all the easy ways to do the jobs now
|
Welsh Dan
Member
Registered: 23rd Mar 00
User status: Offline
|
I'm ok doing most of the stuff anyway
I managed to do most of the work on building a near enough 450bhp RX7
|
Welsh Dan
Member
Registered: 23rd Mar 00
User status: Offline
|
Legend. Just found out that my dodgy readings today might be due to a very dirty afm. Need to get it cleaned good and proper, but hopefully thats it
|
Marc
Member
Registered: 11th Aug 02
Location: York
User status: Offline
|
Is no one going to say the rollers were out?
|
Gsi_Ire
Member
Registered: 9th Aug 04
Location: Republic of Ireland
User status: Offline
|
good result, was that on the standard turbo?
|
Welsh Dan
Member
Registered: 23rd Mar 00
User status: Offline
|
Standard turbo, yeah.
The rollers appeared to be pretty much spot on, as the standard ones were running the power that they should
|
Steve
Premium Member
Registered: 30th Mar 02
Location: Worcestershire Drives: Defender
User status: Offline
|
not saying the rollers were out, but saying they were correct because the std ones were running spot on doesnt mean they were necessarily correct as it doesnt work like that
|
Welsh Dan
Member
Registered: 23rd Mar 00
User status: Offline
|
I can see what you're saying, but the figures weren't that far out from the estimate figures anyway. Either way, good bragging rights
|
Dave A
USER UNDER INVESTIGATION - DO NOT TRADE
Registered: 10th Dec 03
Location: County Durham
User status: Offline
|
quote:
Originally posted by Marc
Is no one going to say the rollers were out?
probably not as it was done on a proper dyno. not a shitty coastdown inertia dyno.
|
Jambo
Member
Registered: 8th Sep 01
Location: Maidenhead, Drives: VXR Arctic
User status: Offline
|
Awesome figure dan
Your car is velly velly rice
|
