[quote="AX Cossie"]Hi all,
Im new to this forum so be gentle!
I first bought the AX a couple of years ago with the intention of upgrading the performance and chassis to use her for track days.
The previous owner used it for sprints and hillclimbs and was quite competitive.
The best time I got at the strip was 16..6secs with all the interior.
That was with full interior and the all alloy 1.4 citroen engine with a 38DGAS carb on it!
Heres the power curve for the engine at that time:
This engine was sold shortly afterwards and a newer 1.6 16V engine from a peugeout 106 was bought pushing out about 120 bhp. Then the strippage began!
Engine went in pretty easily:
I started tarting her up a bit inside:
I then snapped this up at a price i couldnt refuse:
Its a Rotrex Centrifugal Supercharger, works in a simialr way to a turbo with impellors etc but is driven off the crankshaft pulley. This ones rated at about 2bar absolute, not bad for the 1600cc motor. Should be seeing near 250 bhp with that set up.
I concentrated on getting the car ready for the French Car show and MOT'd so I could drive her there. It was a tight deadline but mission accomplished:
http://www.youtube.com/watch?v=9aA92J-SaRE
After this i episode i decided that the shell was not strong enough to take the extra power of the supercharger and decided some shell strengthening was in order.
I was recommended this place from a mate of mine who was giving me some info on mapping my engine:
http://www.awtracksport.com/products/chassis/rollcage.php
The car was stripped and ready for the spaceframing:
They came and took the car a couple of months ago along with a deposit to get measuring up and ordering a few bits and peices.
This is the last I saw of her:
Since I was spending all this money on getting it spaceframed I may as well add a rear diff hanger and T5 transmission tunnel if i wanted to swap to RWD at a later date. So a rear cossie axle, diff and custom prop were on cards.
A month or so went by and talking with AW and looking at the costs involved of keeping it FWD over RWD, RWD was the better option and I could flog my expensive gearbox and get a T5 Borg Warner instead.
I will using the peugeout engine I have which has been fettled and will be pushing out about 300bhp at the fly hopefully. Ill mount it the right way round and get a bellhousing made to mate it to the T5 box.
I will need the front sections of a mk2 escort to finish off the front subframe so im on the look out for mk2 quick rack steering, grp4 alloy hubs, uprights, grp 4 world cup xmember and t5 box.
Thats the plan of attack now, and the latest is that the bulkhead has been cut out and a pinto block has been positioned to take a pattern from.
More pics up next week when i pay another visit to check on the progress and give them more bread.

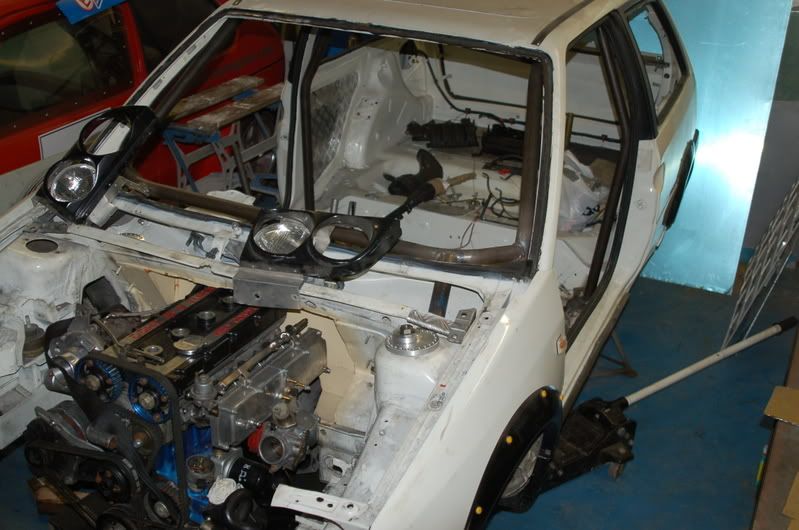

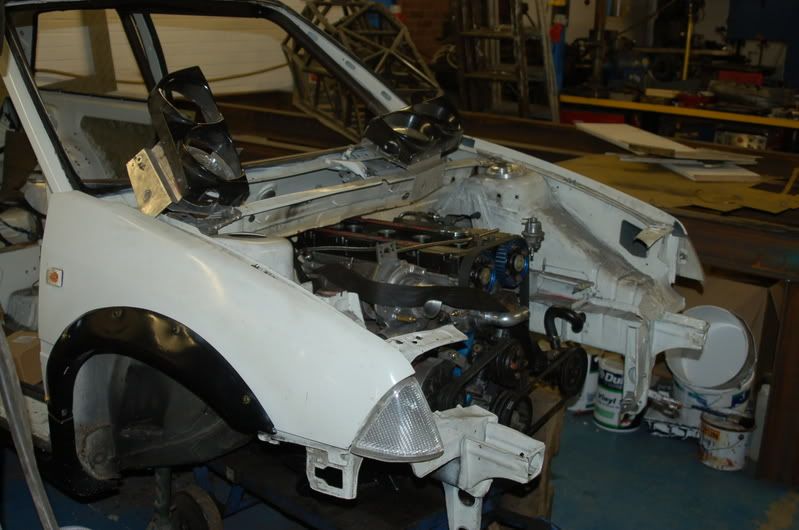

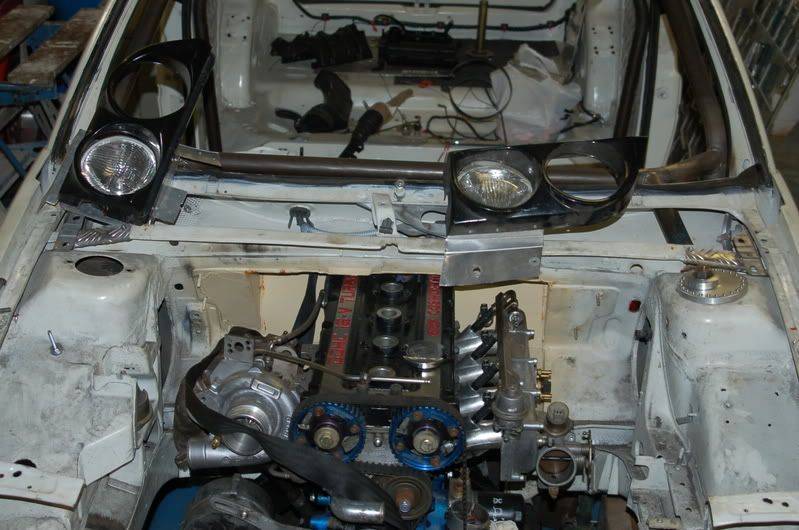

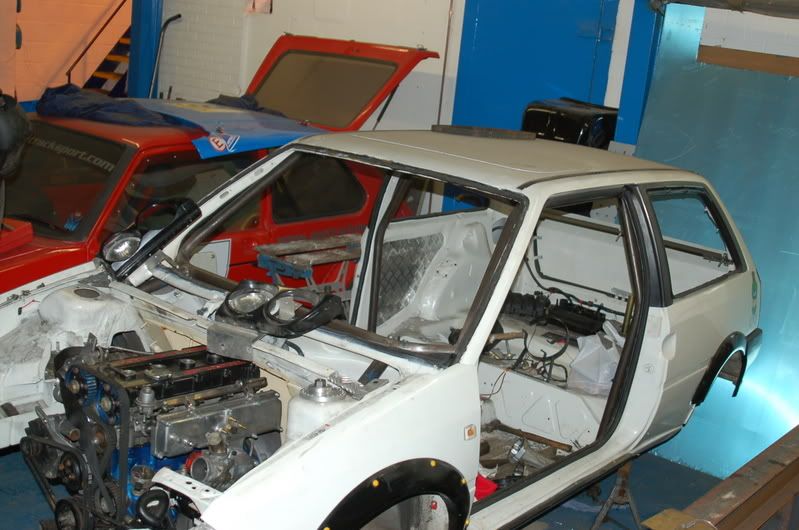

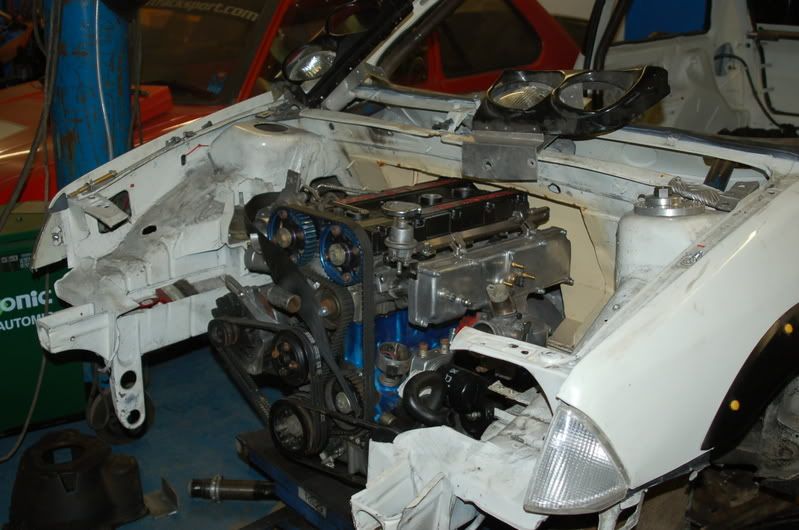

[quote="AX Cossie"]took some more pics today of the progress so far.
Should be on its wheels by end of jan!
Possible wide arch kit perhaps?:
[quote="AX Cossie"]Ive come to the point in the conversion where im not sure which direction to go with regards to the engine.
Hers my pros and cons of each:
C2 Engine Pros:
1) Keeps its part of PSA group
2) First ever front mounted rwd TU engine I believe
3) Light weight
4) keeps it in the 1600cc bracket for 1/4miling
5) ive spent a lot of money getting it to the state of tune its in at the mo
6) progressive power/torque with s/c
C2 Engine Cons:
1) Gonna cost 1.5k to convert to RWD format
2) Will be in a high state of tune so frequent rebuilds etc
Buying a Cossie Engine Pros:
1) More Power
2) Cheaper
3) More tuning companies
4) Fit straight in without custom mounts, bellhousings etc
Cossie Engine Cons:
1) Heavier
2) Unknown Quantity as far as my knowledge is concerned
3) Turbo Lag
4) Will be difficult to shift my C2 engine
However ive managed to flog enough of the C2 engine to go with the cossie lump now :top:

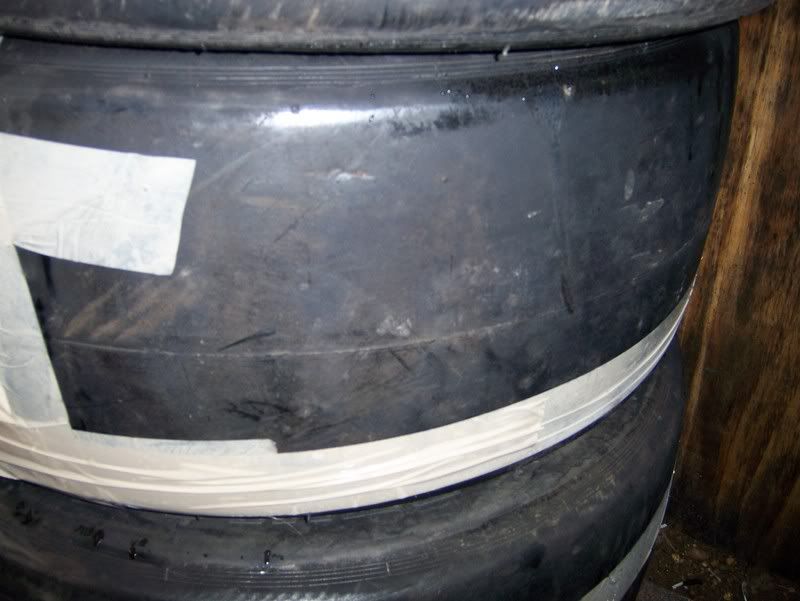

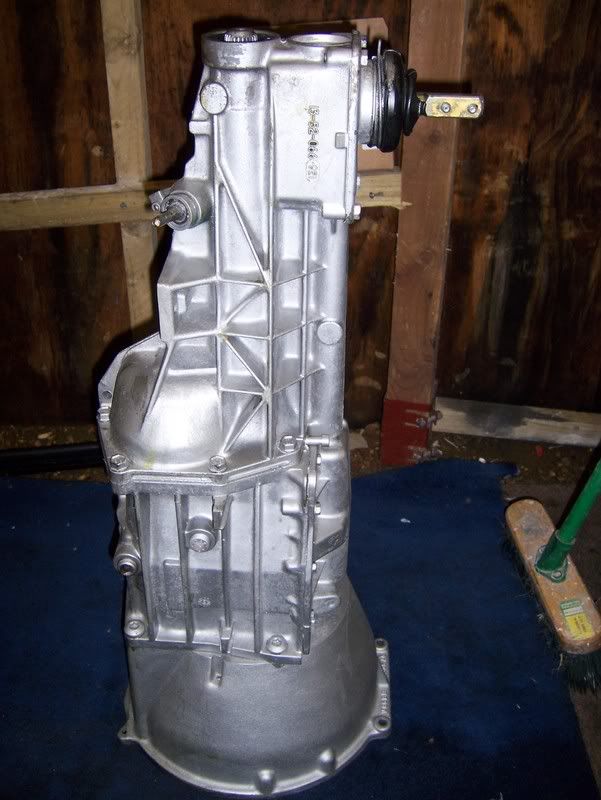

a couple of additions to my growing parts list,
someone buy my pug/citroen/rotrex/omex bits!!!
http://www.axownersclub.com/phpBB2/viewtopic.php?t=18443

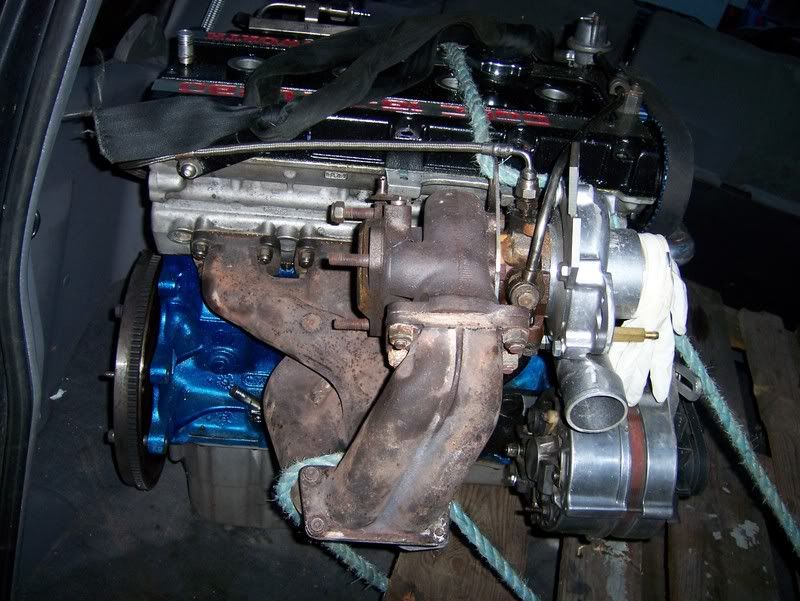

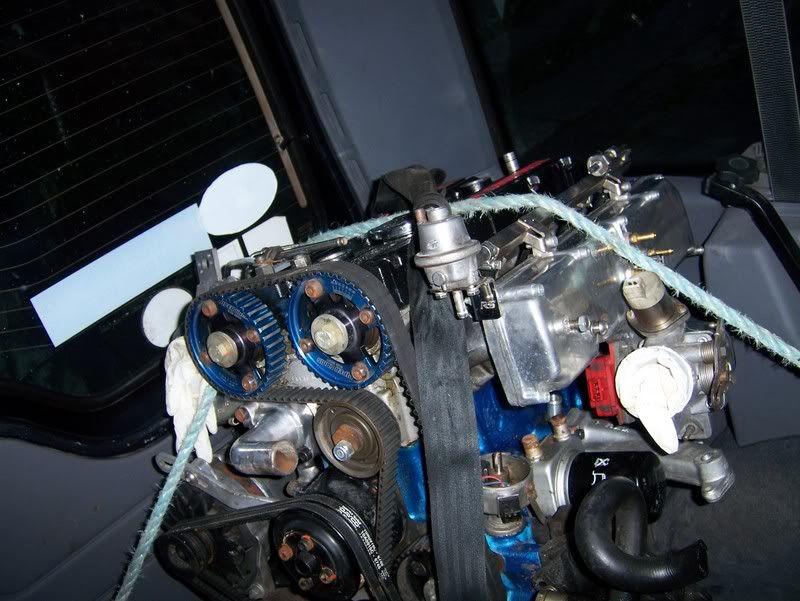

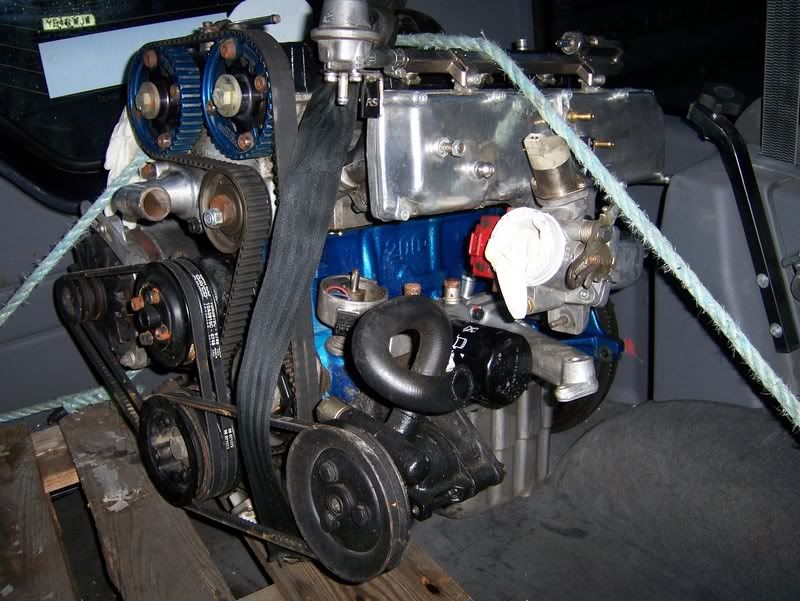

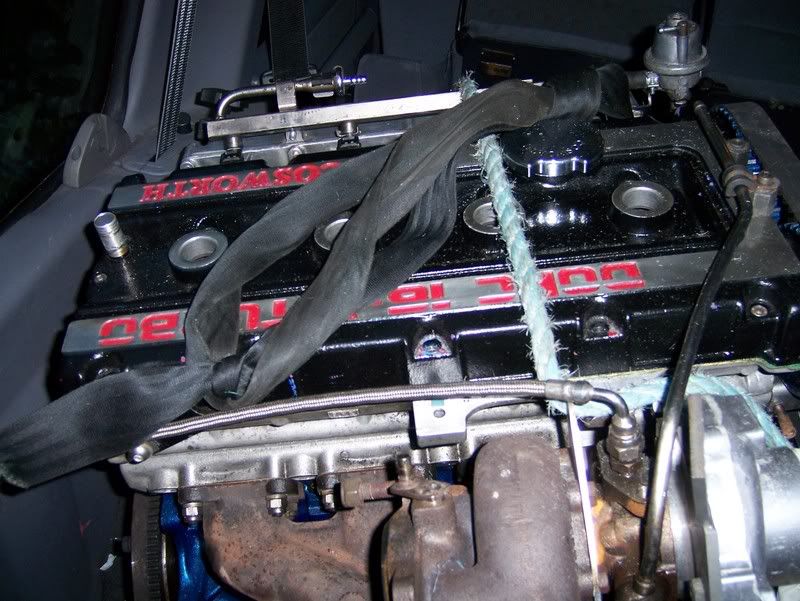

[quote="AX Cossie"]a few more piccies of the engine:
[quote="AX Cossie"]
|
Nismo
Member
Registered: 12th Sep 02
User status: Offline
|
repost repost repost
|
Mather.16v
Member
Registered: 1st Nov 04
Location: Stockport
User status: Offline
|
 holy smokes
|
Cupra Steve
Banned
Registered: 7th Nov 06
User status: Offline
|
the standard engines are cool, thats what my 106 had, what a beast.
sounds like a mad project!
|
jr
Member
Registered: 20th May 02
Location: Kent
User status: Offline
|
nismo, its my repost, buts its updated, as i couldnt find the old thread
|
Tom
Member
Registered: 3rd Apr 02
Location: Wirral, Merseyside
User status: Offline
|
OH my word
Massive bulkhead mods etc, gonna be pretty quick that Reminds me of that 306 wide arch with the cossie motor that enters rallies.
|
Scotty C
Member
Registered: 6th Nov 05
Location: Kidderminster Drives: 1.6 16v Sport
User status: Offline
|
Thats gonna go abit
|
dhdev
Member
Registered: 22nd Dec 05
Location: Midlands
User status: Offline
|
Some of those pics look almost familiar, they didn't build a Lotus Carlton engined Corsa did they?
Looks like an awesome project.
|
jr
Member
Registered: 20th May 02
Location: Kent
User status: Offline
|
|
Mike GSi
Member
Registered: 3rd Jan 07
Location: Ipswich, Suffolk Drives:Astra VXR
User status: Offline
|
crazy mofo's
|
Nismo
Member
Registered: 12th Sep 02
User status: Offline
|
quote:
Originally posted by jr
nismo, its my repost, buts its updated, as i couldnt find the old thread
i know
Why couldnt you find it with the search?................................
|
Stu
Member
Registered: 3rd May 00
Location: Madchester UK Drives: 2014 BMW M135i
User status: Offline
|
Great project and will be awesome when its done. But fuck me, some people must have more money than sense!!!
|
Cupra Steve
Banned
Registered: 7th Nov 06
User status: Offline
|
quote:
Originally posted by Stu
But fuck me, some people must have more money than sense!!!
my thoughts exactly but i get told off for asking why people do it!!!!!
|
Greg_M
Member
Registered: 2nd Sep 03
Location: Grantham, Lincolnshire
User status: Offline
|
AW is just down the road from me, hes a quality bloke. rebuilt me beetle engine. and he done quite a few cars, he did a TT engined mark2 golf a while back
i think ive seen that outside, wondered what it was.
|
Novaneil
Member
Registered: 26th Oct 06
Location: Leamington Spa
User status: Offline
|
 Project
|
cash_2_my_corsa
Member
Registered: 26th Nov 05
Location: in a town near u!
User status: Offline
|
wow im luvin it
|
