Author Boot Release??
liam8888
Member
Registered: 1st Aug 06
Location: Mossley
User status: Offline
27th Nov 06 at 16:48   View User's Profile U2U Member Reply With Quote
I have recently purchased a boot release kit. And looking at the diagram and the instructions I got with it I haven't a clue where to start does any1 know how to fit 1 and maybe have pics for help on doin this much apprieated.
casper_ac
Member
Registered: 25th Mar 03
Location: Belfast
User status: Offline
27th Nov 06 at 16:57   View User's Profile U2U Member Reply With Quote
scan in or take photos of teh wiring so i can have a look
never done it lo
liam8888
Member
Registered: 1st Aug 06
Location: Mossley
User status: Offline
27th Nov 06 at 16:59   View User's Profile U2U Member Reply With Quote
I'll get some on in a min
liam8888
Member
Registered: 1st Aug 06
Location: Mossley
User status: Offline
27th Nov 06 at 17:17   View User's Profile U2U Member Reply With Quote

















[Edited on 27-11-2006 by liam8888]

[Edited on 27-11-2006 by liam8888]
liam8888
Member
Registered: 1st Aug 06
Location: Mossley
User status: Offline
27th Nov 06 at 17:20   View User's Profile U2U Member Reply With Quote
Any ideas any1
jay kay
Member
Registered: 22nd Jan 06
Location: West Midlands
User status: Offline
27th Nov 06 at 21:23   View User's Profile U2U Member Reply With Quote
I also have one of these acutators which i fitted into my doors for central locking i remember looking at the boot mechanism and thinkin how the hell i wud fit i still havent but ive wired them up to the doors so i could help you wit the wiring up but not the actual fiting to the boot mechanism maybe its time i gave it a second look
liam8888
Member
Registered: 1st Aug 06
Location: Mossley
User status: Offline
28th Nov 06 at 14:02   View User's Profile U2U Member Reply With Quote
Yeah tht would be helpful even if you could take pics of yours wired up maybe i could do it from there. Thanks
jamied
Member
Registered: 27th Oct 03
Location: Marbella,Spain Drives: C63
User status: Offline
29th Nov 06 at 03:40   View User's Profile U2U Member Reply With Quote
i use a tie wrap iirc and bolted it to boot, then tightened it enough so it opened it and sprung back, works very well
gsimark
Member
Registered: 14th Dec 05
User status: Offline
29th Nov 06 at 08:48   View User's Profile U2U Member Reply With Quote
u2u sent
gsimark
Member
Registered: 14th Dec 05
User status: Offline
29th Nov 06 at 08:53   View User's Profile U2U Member Reply With Quote

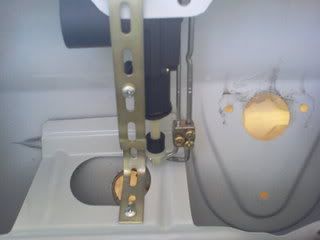

ok there's a pic of mine was a bitch but works bang on as for wiring it easy,
the green goes to ground, the blue run through the car or whereevr you put it,
wiring the relay
termnail 86 - perm 12v
terminal 85 - from switch
terminal 87 perm 12v
terminal 30 to blue wire
