Right,
I'm a bit unclear of what goes where...

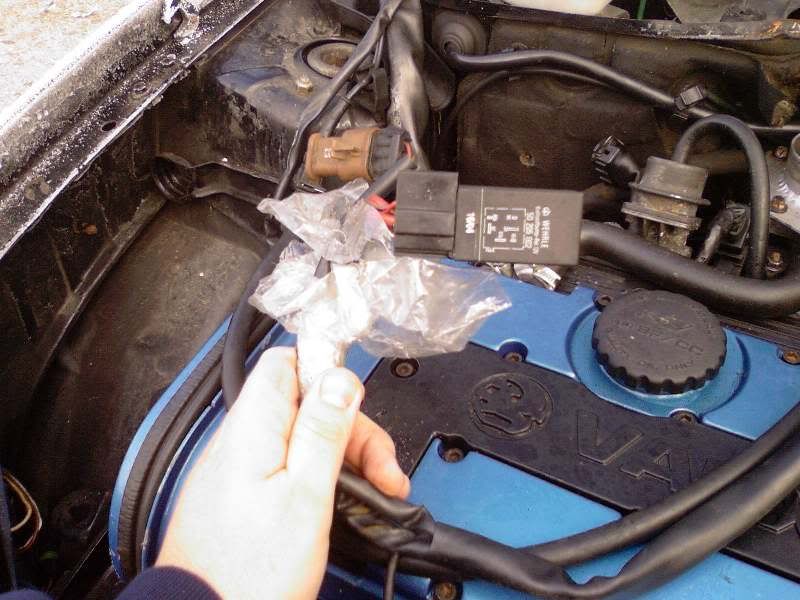

First pic, where does this belong? Should it be in the engine bay? Another lead comes off it ( you can just make it out at the bottom of the pic, it just has a bare end, no plug or owt.)

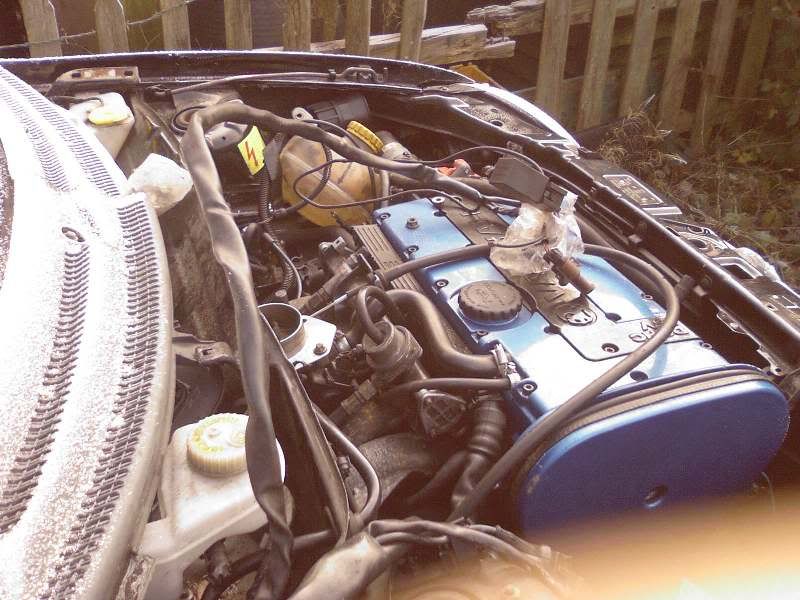

Another pic if it helps...

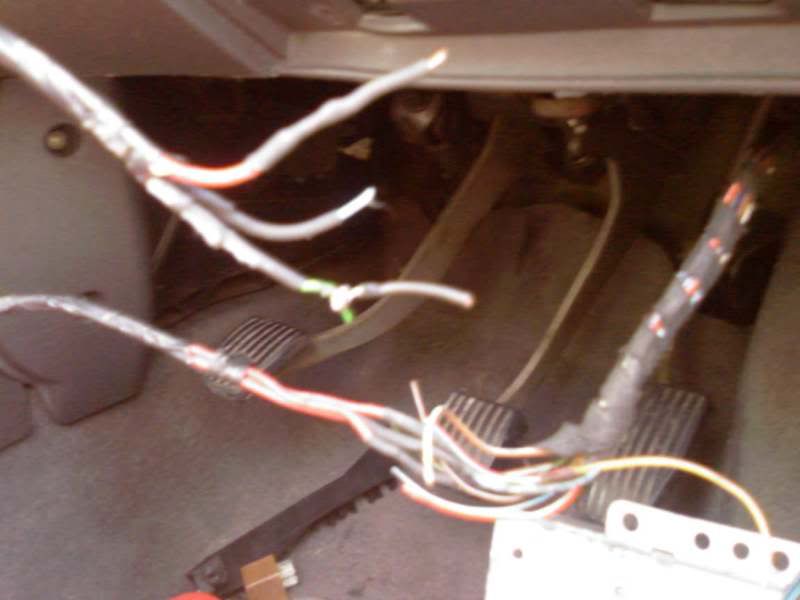

Also, wiring the ECU in, this was already in a Corsa so thats why there are solder joints already in place, i guess...Do i just wire this lot...

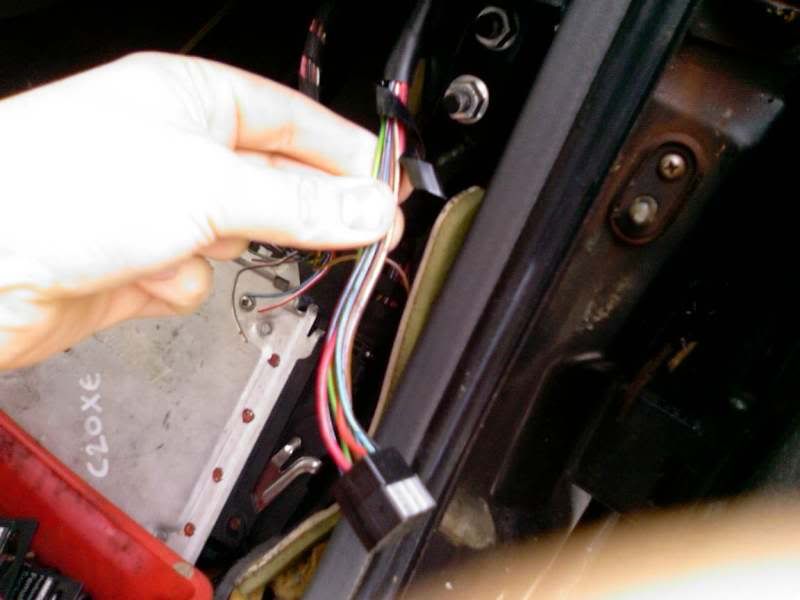

Into this...
Also, where do these extra bits go?...red blue and green ends

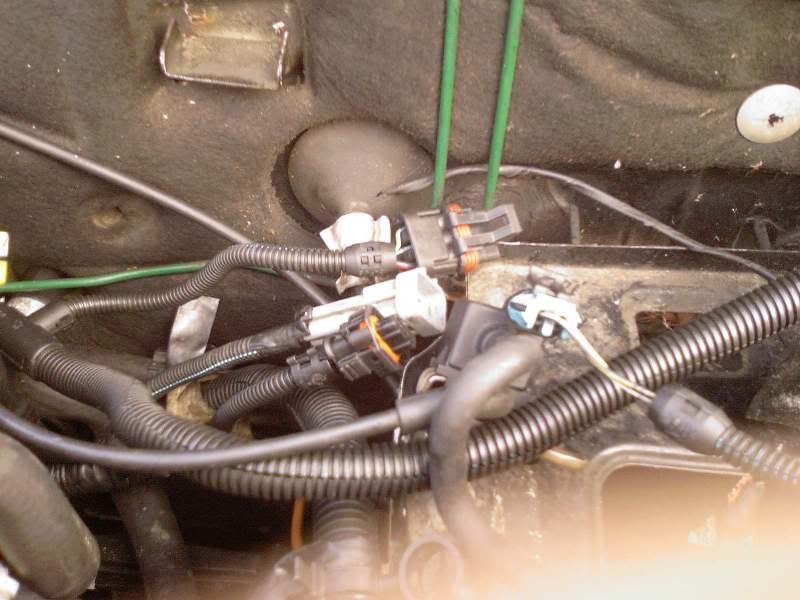

One last question, are these old Corsa X14XE plugs redundant now?
[Edited on 29-12-2005 by NotMyCorsa]
|
JoeyB
Member
Registered: 19th Jun 03
Location: Fareham HANTS, Drives: Astra Coupe Turbo
User status: Offline
|
bttt
|
starkie
Member
Registered: 1st Jul 03
Location: Leslie, Fife
User status: Offline
|
top one is fuel relay can go anywhere it will fit
two plugs one will be for starter etc
green wire is for rev counter
|
JoeyB
Member
Registered: 19th Jun 03
Location: Fareham HANTS, Drives: Astra Coupe Turbo
User status: Offline
|
The top one has a bare black cable coming off it? Does that go to coil?
What two plugs are you talking about? The orange ones in the engine bay? They are part of the Corsa loom...
If green wire is for rev counter, do you know what the red and blue are for?
Cheers starkie
|
JoeyB
Member
Registered: 19th Jun 03
Location: Fareham HANTS, Drives: Astra Coupe Turbo
User status: Offline
|
Bump!
|
JoeyB
Member
Registered: 19th Jun 03
Location: Fareham HANTS, Drives: Astra Coupe Turbo
User status: Offline
|
Bttt
|
