Author spare plug found! ***with pics***
Dave A
USER UNDER INVESTIGATION - DO NOT TRADE

Registered: 10th Dec 03
Location: County Durham
User status: Offline
5th Apr 05 at 20:38   View User's Profile U2U Member Reply With Quote

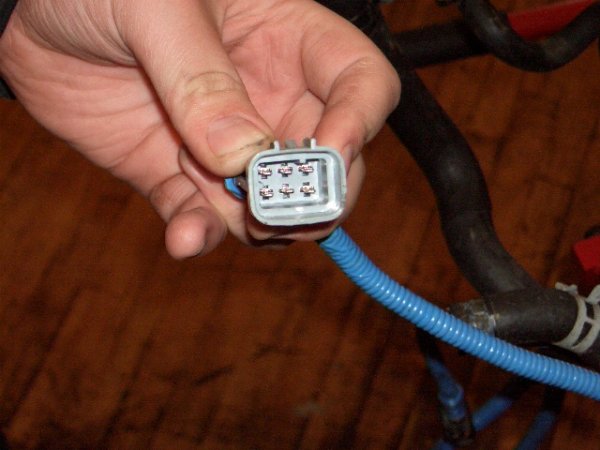

found a "spare plug" on the power loom (loom that powers alternator and starter motor and has the battery terminals on it) is grey with 6 pins.

the only difference between the new engine and old one is that the new is a 1999 and the old one is 1995. and the new one had aircon originally.

cant find where it goes, just wondered if its for the aircon








[Edited on 07-04-2005 by corsa808]
Dave A
USER UNDER INVESTIGATION - DO NOT TRADE

Registered: 10th Dec 03
Location: County Durham
User status: Offline
6th Apr 05 at 06:53   View User's Profile U2U Member Reply With Quote
anyone?
Siberia
Member
Registered: 9th Oct 03
Location: Leprechaun Land Drives : Zafira GSI
User status: Offline
6th Apr 05 at 10:57   View User's Profile U2U Member Reply With Quote
if the car runs without it then just tape it up safely

p.s dont think it for aircon as my c16xe had a spare plug when i was wiring it into my 1.2 corsa and the plug was for aircon.... but it is on the main loom inside the car and not on the altenator/starter loom.

[Edited on 06-04-2005 by Siberia]
Dave A
USER UNDER INVESTIGATION - DO NOT TRADE

Registered: 10th Dec 03
Location: County Durham
User status: Offline
6th Apr 05 at 18:21   View User's Profile U2U Member Reply With Quote
car doesnt run yet as the engine is still in bits! ill post sum pics of it later, see if anyone recognises it
Dave A
USER UNDER INVESTIGATION - DO NOT TRADE

Registered: 10th Dec 03
Location: County Durham
User status: Offline
7th Apr 05 at 08:33   View User's Profile U2U Member Reply With Quote
.
broster
Premium Member

Avatar

Registered: 6th Dec 02
Location: Drives: E39
User status: Offline
7th Apr 05 at 16:25   View Garage View User's Profile U2U Member Reply With Quote
to be honest mate i wouldnt worry, my car has so many spare plugs and wires its amazing! i just hide them
Dave A
USER UNDER INVESTIGATION - DO NOT TRADE

Registered: 10th Dec 03
Location: County Durham
User status: Offline
7th Apr 05 at 18:37   View User's Profile U2U Member Reply With Quote
quote:
Originally posted by broster
my car has so many spare plugs and wires its amazing! i just hide them


lee mitchell
Member
Registered: 26th Jan 01
Location: kent...drive's: eveyones conversion cars hard lol
User status: Offline
7th Apr 05 at 18:53   View User's Profile U2U Member Reply With Quote
that will plug into the loom in the corsa engine bay. that runs out of the bulkhead. its the wires for starter and oiul pressure etc which then run inside the car
Dave A
USER UNDER INVESTIGATION - DO NOT TRADE

Registered: 10th Dec 03
Location: County Durham
User status: Offline
7th Apr 05 at 19:33   View User's Profile U2U Member Reply With Quote
but it wasnt on the old loom! its got nowhere to plug into on the loom that goes to the ecu or in the engine bay!
lee mitchell
Member
Registered: 26th Jan 01
Location: kent...drive's: eveyones conversion cars hard lol
User status: Offline
7th Apr 05 at 21:19   View User's Profile U2U Member Reply With Quote
it it hasnt got nowhere to plug then ur starter motor and other bits aint gna work is it. trust me. ive done more conversions than most. and im telling u im right
Siberia
Member
Registered: 9th Oct 03
Location: Leprechaun Land Drives : Zafira GSI
User status: Offline
7th Apr 05 at 22:26   View User's Profile U2U Member Reply With Quote
yeh lee is right it plugs into a plug that is on the body loom for the oil pressure and altenator

i only took this off another car yesterday to put on my c16xe as the one thats on it at the moment is fooked(oil pressure wire missing)




you might have problems though cos the corsa loom depending on the year will have a 3 pin plug to connect to that plug



your plug there has 6 pins.....
Dave A
USER UNDER INVESTIGATION - DO NOT TRADE

Registered: 10th Dec 03
Location: County Durham
User status: Offline
7th Apr 05 at 23:23   View User's Profile U2U Member Reply With Quote
i do have the 3 pin plug on the other end of the loom as well!

it doesnt show it in the pics though.

so the 3 pin plug is the one that is for the starter, alternator and oil pressure,


so whats the 6 pin one for
lee mitchell
Member
Registered: 26th Jan 01
Location: kent...drive's: eveyones conversion cars hard lol
User status: Offline
8th Apr 05 at 06:00   View User's Profile U2U Member Reply With Quote
the one in the pic is six pin. 1 ire for starter. 1 for alternator, 3 for speed sensor 1 for oil pressure
Dave A
USER UNDER INVESTIGATION - DO NOT TRADE

Registered: 10th Dec 03
Location: County Durham
User status: Offline
8th Apr 05 at 08:27   View User's Profile U2U Member Reply With Quote
quote:
Originally posted by lee mitchell
the one in the pic is six pin. 1 ire for starter. 1 for alternator, 3 for speed sensor 1 for oil pressure


so whats the other plug wuth 3 pins for then?

where will i find the speed sensor? thought it was part of the speedo clocks?
Siberia
Member
Registered: 9th Oct 03
Location: Leprechaun Land Drives : Zafira GSI
User status: Offline
8th Apr 05 at 08:38   View User's Profile U2U Member Reply With Quote
strange... i only have 1 3 pins plug that joins that loom(start loom) to the car loom....

ive only dealt with a c16xe though lee has dealt with a few different ones o i'd listen to him...
Dave A
USER UNDER INVESTIGATION - DO NOT TRADE

Registered: 10th Dec 03
Location: County Durham
User status: Offline
8th Apr 05 at 08:54   View User's Profile U2U Member Reply With Quote
imsopissedoffwithfuckincars

going to check the colour of the wires and look in a haynes manual at halfrauds i think.

only got a manual for 1993-1997 cars.
Siberia
Member
Registered: 9th Oct 03
Location: Leprechaun Land Drives : Zafira GSI
User status: Offline
8th Apr 05 at 09:01   View User's Profile U2U Member Reply With Quote
its can me a pain when ya dont get the answers ya want i'd say just do everything else then worry about that when its all done....
russb
Member
Registered: 30th Oct 04
Location: chester-ish
User status: Offline
8th Apr 05 at 09:52   View User's Profile U2U Member Reply With Quote
quote:
Originally posted by Siberia
strange... i only have 1 3 pins plug that joins that loom(start loom) to the car loom....

ive only dealt with a c16xe though lee has dealt with a few different ones o i'd listen to him...


same ere, with an x14xe though!
Dave A
USER UNDER INVESTIGATION - DO NOT TRADE

Registered: 10th Dec 03
Location: County Durham
User status: Offline
8th Apr 05 at 10:40   View User's Profile U2U Member Reply With Quote
im going down the scrappys to get another loom with only 3 pins on it.
dna23
Member
Registered: 1st Nov 04
Location: Northamptonshire
User status: Offline
8th Apr 05 at 11:02   View User's Profile U2U Member Reply With Quote
quote:
Originally posted by broster
to be honest mate i wouldnt worry, my car has so many spare plugs and wires its amazing! i just hide them


haha thats legendary
